Tutorial: Non-Regular Languages

2025-05-21

1 Repetition

Show \(A = \{ww: w \in \{0,1\}^*\}\) is not regular

Solution

We’ll find an infinite set \(S\) such that every pair of strings in \(S\) is distinguishable.

Let \(S = \{0^{2n}1: n \in \mathbb{N}\}\). Note that \(S\) is infinite since it contains at least one string for every natural number.

Let \(x, y \in S\) with \(x \neq y\). Then \(x = 0^{2i}1\) and \(y = 0^{2j}1\) for some \(i \neq j\). WLOG, assume \(i < j\).

Then, I claim that \(0^{2i}1\) is a distinguishing string for \(x\) and \(y\). We have

\(0^{2i}10^{2i}1 \in A\). We’ll show that \(z = 0^{2j}10^{2i}1 \notin A\). Note that \(z\) is a string of length \(2(i + j) + 2\), thus splitting \(z\) in two equal parts, we have that each of the parts have length \(i + j + 2\). Since \(i + j + 1 < 2j + 1\), we have that the first half the \(z\) consists of entirely \(0\)s. The second half contains at least 2 \(1\)s, so \(z \neq ww\) for any \(w \in \Sigma^*\) and thus \(z \not \in A\).

2 Regular?

2.1

For each of the languages below, guess whether or not the language is regular using the intuition that regular languages require a finite amount of memory. If the language is not regular, prove formally that the language is not regular using both methods we learned in class today.

  1. \(\{w: w\text{ contains 001 as a substring}\}\)

  2. \(\{w: w\text{ has more than one hundred 0s}\}\)

  3. \(\{w: w\text{ has more 0s than 1s}\}\)

  4. \(\{w: w\text{ has more 0s mod 10 than 1s mod 10}\}\)

  5. \(\{w: w\text{ has twice as many 0s as 1s}\}\)

Solution
  1. Regular. Only need to store the last 2 letters read and whether or not you have already seen 001 or note
  2. Regular. Only need to store a counter which takes value at most 100.
  3. Not Regular. Need to store number of 0s which can be an arbitrarily large counter
  4. Regular. Only need to store two counters, each taking value at most 10.
  5. Not Regular. Need to store number of 0s which can be an arbitrarily large counter.

We’ll show 3 is not regular.

(MNT) By the Myhill-Nerode Theorem, it suffices to find an infinite set of strings that are pairwise distinguishable relative to \(A\).

Let \(S = \{0^{n+1}: n \in \mathbb{N}\}\) note that \(S\) is infinite since it has at least one element for every natural number.

Now we’ll show that \(S\) is pairwise distinguishable. Let \(x, y \in S\) with \(x \neq y\). Since \(x \neq y\), we have that \(x = 0^p, y = 0^q\) for some \(p, q \in \mathbb{N}\) with \(1 < p, 1 < q\), and \(p \neq q\). WLOG, suppose \(p < q\).

Then \(x1^p = 0^p1^p \notin A\), since the number of \(0\) and \(1\)s are equal, but \(y1^p = 0^q1^p \in A\), since \(p < q\). Thus, \(x\) and \(y\) are distinguishable as required. 5. is similar.

3 NFA to Regex

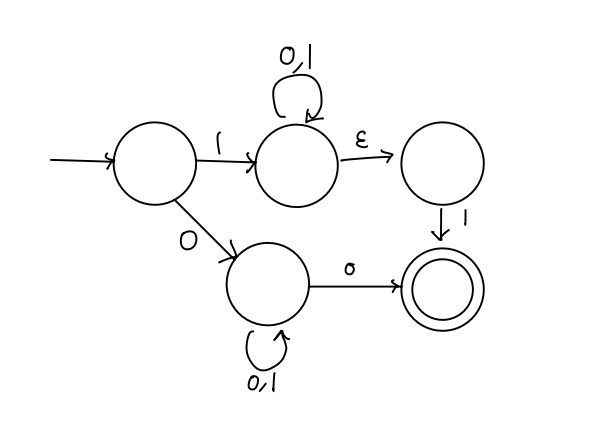

Convert the following NFA to a regular expression using the method from lecture.

Solution

Link
