Style Presets

In case the user does not want to get their hands dirty with specific DOM (and RoughJS) attributes for configuring the style of an object, they have the option specify a present, which represents an umbrella of different styling attributes that are combined to produce a particular effect, such as "highlighting" an object, or "hiding" a particular component of it.

To declare the desired preset, the user must assign it to the style attribute (e.g. style: "highlight").

Explanation​

highlight​

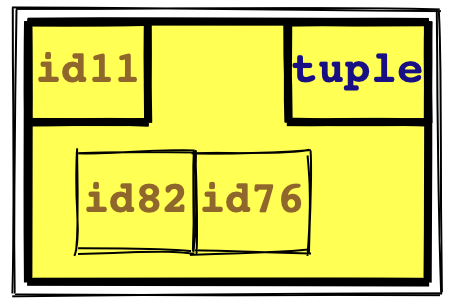

highlight demo

When the keyword highlight is provided as the value for the style attribute, there will be significant changes on the appearance of the container. In terms of the boxes (the container representing the data, the id box if applicable and the type box), the lines will be bolder, and there will be less roughness (lines would be more still than usual). In terms of the texts (the text representing the id, type and the value), the font size will be bigger, and they will appear bolder than default.

highlight_id​

When the keyword highlight_id is provided as the value for the style attribute, there will be significant changes on the appearance of the container. In terms of the id box the lines will be bolder, and there will be less roughness (lines would be more still than usual). In terms of the id text, the font size will be bigger, and it will appear bolder than default.

highlight_type​

When the keyword highlight_type is provided as the value for the style attribute, there will be significant changes on the appearance of the container. In terms of the type box the lines will be bolder, and there will be less roughness (lines would be more still than usual). In terms of the type text, the font size will be bigger, and it will appear bolder than default.

hide​

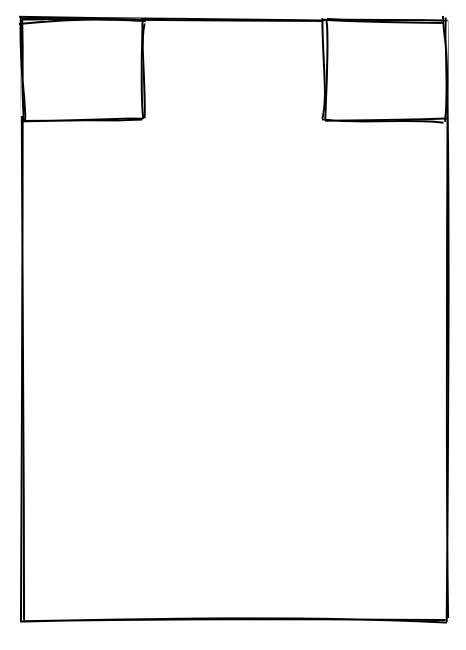

hide demo It makes all three major boxes (type box, id box, and the surrounding container box) all blank (white).

hide_id​

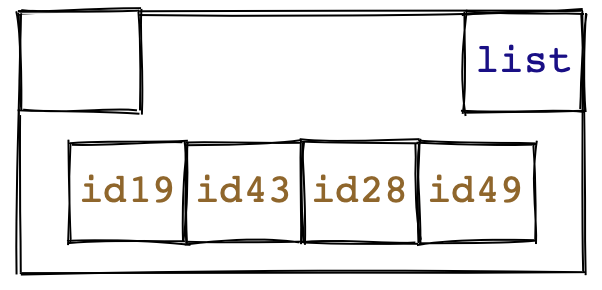

hide-id demo It will make the id box blank (white).

hide_type​

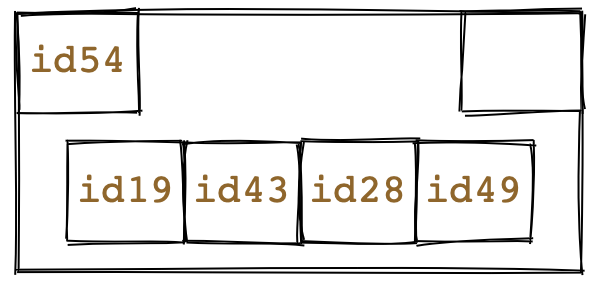

hide-id demo It will make the type box blank (white).

hide_container​

It will make the container box blank (white), but not the type and id boxes. (NOTE: this is not currently supported for sequences).

fade​

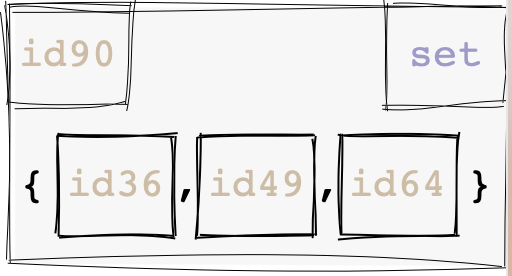

fade demo It will "fade" the box.

fade_type​

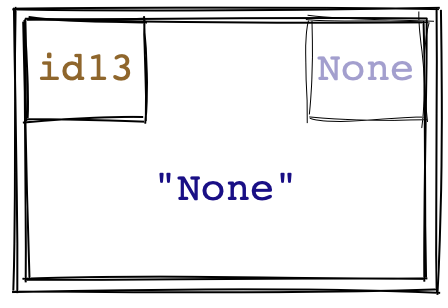

fade-type demo It will "fade" the type sub-box.

fade_id​

It will "fade" the id sub-box.

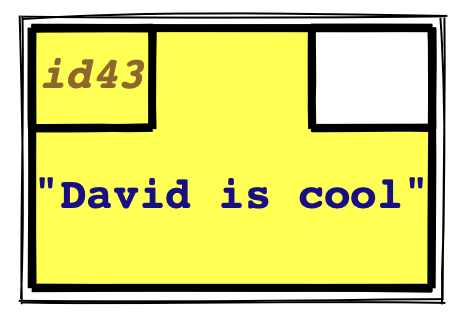

A combination of various presets and user-defined styles, with style: ["highlight", "hide_type", {"text_id" : {"font-style" : "italic"}}]​

combo demo

Implementation Note​

In regard to implementation, the array of "presets" is resolved into a single JS style object, with the help of the deepmerge library. Once the style attribute has been assigned to the appropriate object, we call the populateDefaultStyle function, simply to complement with any default attributes that are not there.
