Here is the translated Fortran program with GOTO statements converted from the
statecharts of refactored SquirrelMail.
<pre>
      call EnterURL
 10   call Login
      if (wrongIMAP) goto 30
 20   call ShowForm
      if (wrongKey) goto 20
      call EnterForm
      if (wrongForm) goto 30
      call StartWebMail
      if (loggedOut) goto 10
      if (expired) goto 10
      call Send
      Stop
 30   call ReportError
      call GoBack
      goto 10
      end
</pre>
It is saved as "before.f". Then,

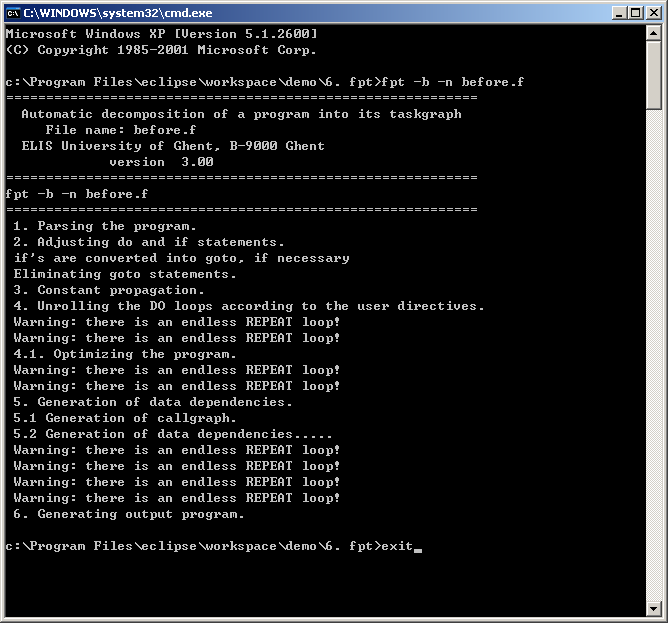

The GOTO is eliminated by the following command: <br/>
<code>
fpt -b -n before.f
</code> <br/>
<img src="command.png"/> <br/>
The machine-generated code without GOTO statements is called "before-par.f".
<pre>
        LOGICAL br1,br2,br3,br4
        br4=.False.
        br3=.False.
        br2=.False.
        br1=.False.
        CALL enterurl
        REPEAT
          REPEAT
            REPEAT
              CALL login
              IF (wrongimap) THEN
                br1=.True.
                EXIT
              ENDIF
              REPEAT
                CALL showform
              UNTIL (.not.wrongkey)
              CALL enterform
              IF (wrongform) THEN
                br2=.True.
                EXIT
              ENDIF
              CALL startwebmail
            UNTIL (.not.loggedout)
            IF (br2) THEN
              br3=.True.
              EXIT
            ENDIF
            IF (br1) THEN
              br4=.True.
              EXIT
            ENDIF
          UNTIL (.not.expired)
          IF (.not.br4) THEN
            IF (.not.br3) THEN
              CALL send
              STOP
            ENDIF
          ENDIF
          CALL reporterror
          CALL goback
        UNTIL (.False.)
        END
</pre> <br/>
It can be simplified easily into the following structured code
"after.f":
<pre>
      CALL EnterURL
      REPEAT
      REPEAT
        CALL Login
         IF (.not.wrongIMAP) THEN
           REPEAT
               CALL ShowForm
           UNTIL (.not.wrongKey)
           CALL EnterForm
           IF(.not.wrongForm)THEN
              CALL StartWebmail
           ENDIF
        ENDIF
      UNTIL (.not.loggedOut.or .not.expired.or.wrongIMAP.or.wrongForm)
      IF(wrongIMAP.or.wrongForm)
      THEN
         CALL ReportError
         CALL GoBack
      ENDIF
      UNTIL (.not.wrongIMAP.and.not.wrongForm)
      CALL Send
      END

</pre>
