Benchmarking Model-Based Reinforcement Learning

Tingwu Wang
Xuchan Bao
Ignasi Clavera
Jerrick Hoang
Yeming Wen
Eric Langlois
Shunshi Zhang
Guodong Zhang
Pieter Abbeel
Jimmy Ba
University of Toronto   &   UC Berkeley  &   Vector Institute

[Arxiv Page] [PDF] Model-based reinforcement learning (MBRL) is widely seen as having the potential to be significantly more sample efficient than model-free RL. However, research in model-based RL has not been very standardized. It is fairly common for authors to experiment with self-designed environments, and there are several separate lines of research, which are sometimes closed-sourced or not reproducible. Accordingly, it is an open question how these various existing MBRL algorithms perform relative to each other. To facilitate research in MBRL, in this paper we gather a wide collection of MBRL algorithms and propose over 18 benchmarking environments specially designed for MBRL. We benchmark these MBRL algorithms with unified problem settings, including noisy environments. Beyond cataloguing performance, we explore and unify the underlying algorithmic differences across MBRL algorithms. We characterize three key research challenges for future MBRL research: the dynamics coupling effect, the planning horizon dilemma, and the early-termination dilemma.


Dyna-Style Algorithms
In the Dyna algorithm, training iterates between two steps. First, using the current policy, data is gathered from interaction with the environment and then used to learn the dynamics model. Second, the policy is improved with imagined data generated by the learned model. This class of algorithms learn policies using model-free algorithms with rich imaginary experience without interaction with the real environment.
(1) Model-Ensemble Trust-Region Policy Optimization (ME-TRPO)
(2) Stochastic Lower Bound Optimization (SLBO)
(3) Model-Based Meta-Policy-Optimzation (MB-MPO)
Policy Search with Backpropagation through Time
Contrary to Dyna-style algorithms, where the learned dynamics models are used to provide imagined data, policy search with backpropagation through time exploits the model derivatives. Consequently, these algorithms are able to compute the analytic gradient of the RL objective with respect to the policy, and improve the policy accordingly.
(4) Probabilistic Inference for Learning Control (PILCO)
(5) Iterative Linear Quadratic-Gaussian (iLQG)
(6) Guided Policy Search (GPS)
(7) Stochastic Value Gradients (SVG)
Shooting Algorithms
This class of algorithms provide a way to approximately solve the receding horizon problem posed in model predictive control (MPC) when dealing with non-linear dynamics and non-convex reward functions. Their popularity has increased with the use of neural networks for modelling dynamics.
(8) Random Shooting (RS)
(9) Mode-Free Model-Based (MB-MF)
(10) Probabilistic Ensembles with Trajectory Sampling (PETS-RS and PETS-CEM)
Model-free Baselines
In our benchmark, we include MFRL baselines to quantify the sample complexity and asymptotic performance gap between MFRL and MBRL. We include both state-of-the-art on-policy and off-policy algorithms.
(11) Trust-Region Policy Optimization (TRPO)
(12) Proximal-Policy Optimization (PPO)
(13) Twin Delayed Deep Deterministic Policy Gradient (TD3)
(14) Soft Actor-Critic (SAC)

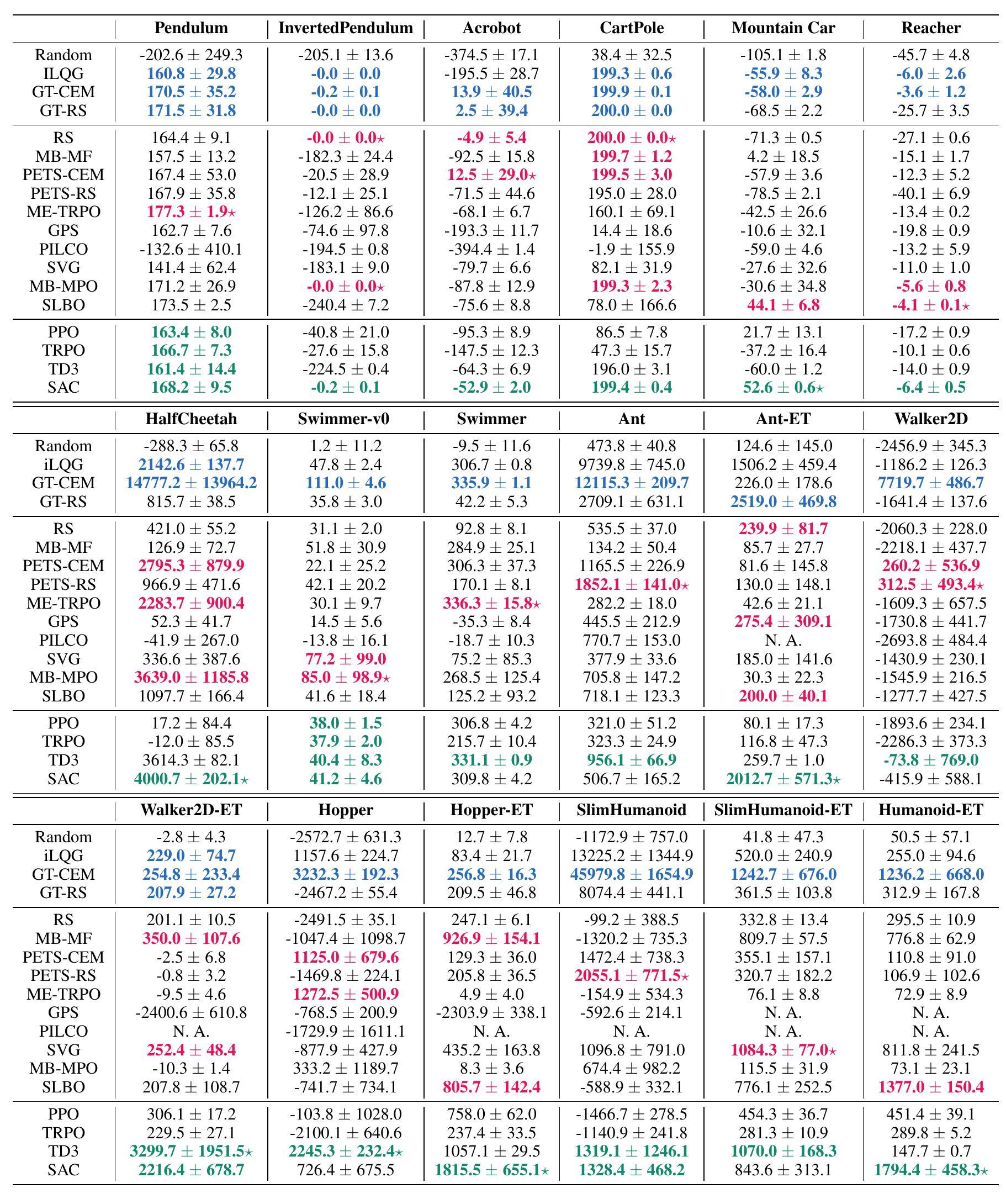

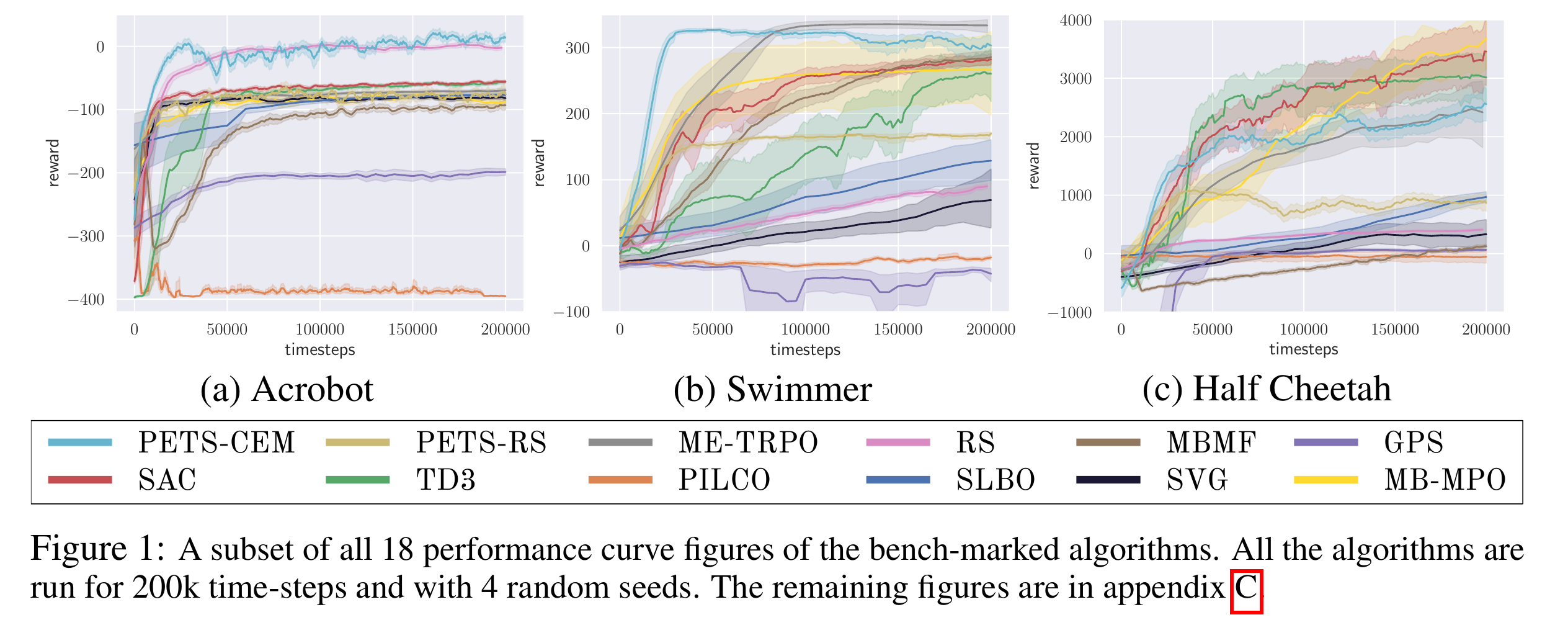

Our benchmark consists of 18 environments with continuous state and action space based on OpenAI Gym. We include a full spectrum of environments with different difficulty and episode length, from CartPole to Humanoid. Each algorithm is run with 4 random seeds for 200k time-steps. We refer readers for the paper for detailed performance curves.

Engineering Statistics

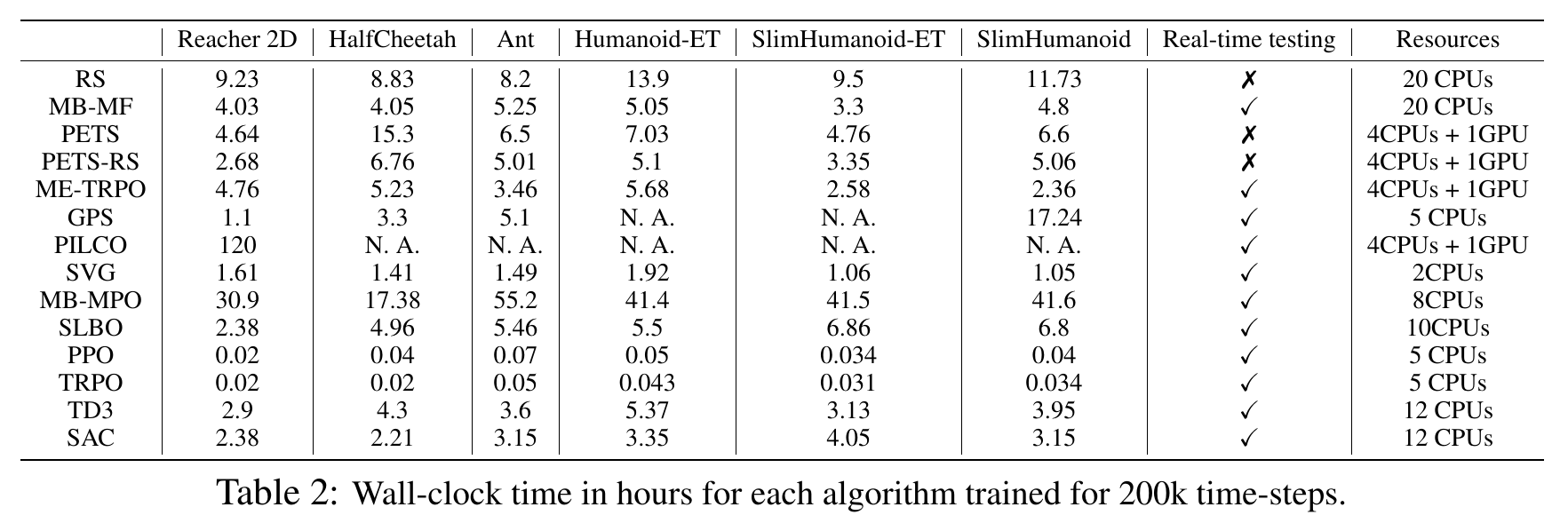

The engineering statistics shown in Table 2 include the computational resources, the estimated wall-clock time, and whether the algorithm is fast enough to run at real-time at test time, namely, if the action selection can be done faster than the default time-step of the environment.

Dynamics Bottleneck

The results show that MBRL algorithms plateau at a performance level well below their model-free counterparts and themselves with ground-truth dynamics. This points out that when learning models, more data does not result in better performance. For instance, PETS's performance plateaus after 400k time-steps at a value much lower than the performance when using the ground-truth dynamics.

Planning Horizon Dilemma

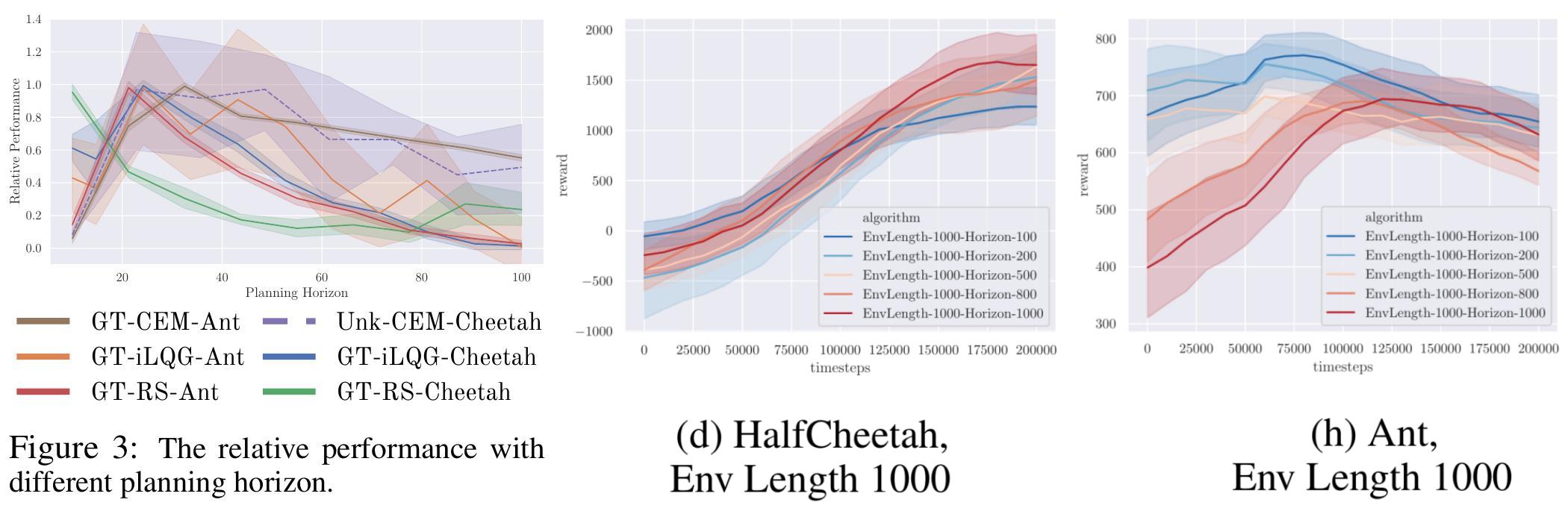

One of the critical choices in shooting methods is the planning horizon. In Figure 3, we show the performance of iLQG, CEM and RS, using the same number of candidate planning sequences, but with different planning horizon. We notice that increasing the planning horizon does not necessarily increase the performance, and more often instead decreases the performance. We argue that this is result of insufficient planning in a search space which increases exponentially with planning depth, i. e., the curse of dimensionality.
On the right, we further experiment with the imaginary environment length in SLBO (Dyna) algorithms. We have similar results that increasing horizon does not necessarily help the performance and sometimes hurt the performance.

Early Termination Dilemma

Early termination, when the episode is finalized before the horizon has been reached, is a standard technique used in MFRL algorithms to prevent the agent from visiting unpromising states or damaging states for real robots. When early termination is applied to the real environments, MBRL can correspondingly also apply early termination in the planned trajectories, or generate early terminated imaginary data. However, we find this technique hard to integrate into the existing MB algorithms.


In this paper, we benchmark the performance of a wide collection of existing MBRL algorithms, evaluating their sample efficiency, asymptotic performance and robustness. Through systematic evaluation and comparison, we characterize three key research challenges for future MBRL research. Across this very substantial benchmarking, there is no clear consistent best MBRL algorithm, suggesting lots of opportunities for future work bringing together the strengths of different approaches.

Reproducibility and MBRL Package

The benchmarking environments and the code to reproduce the results can be found Github Code. The installation guide and detailed readme to run the code can be found in the Github. We are currently working towards a unified package for all the MBRL algorithms.

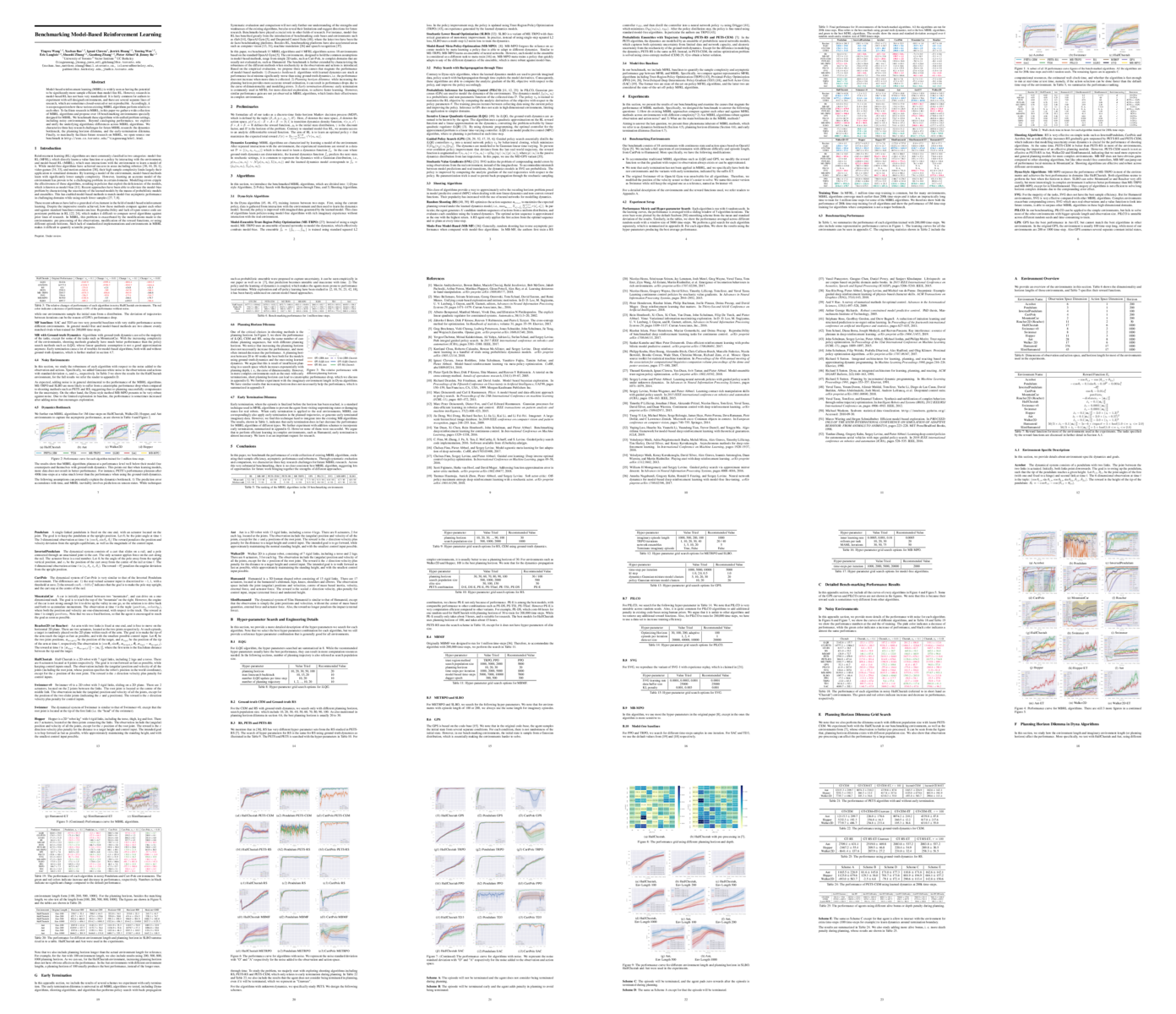

[Paper] (5.7 MB)
