Washing Machine Model C

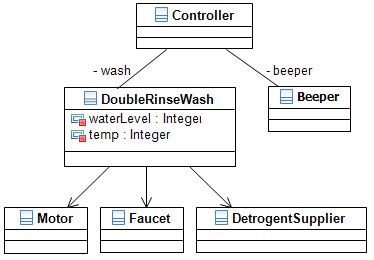

Class Diagram:

Class Diagram

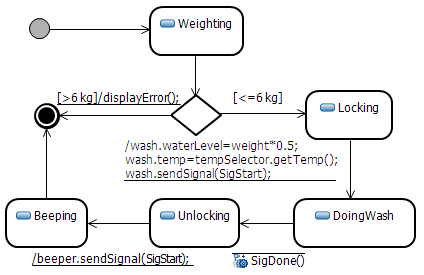

Controller State Machine:

Controller State Machine

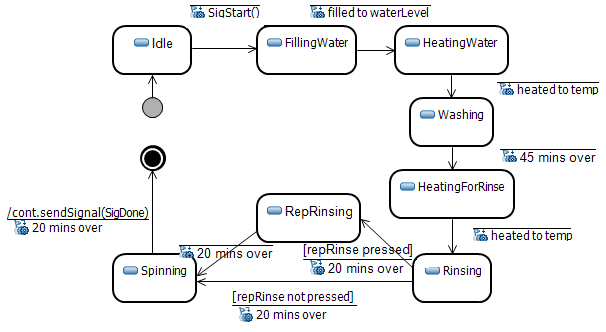

DoubleRinseWash State Machine:

Wash State Machine

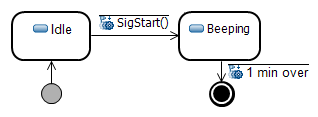

Beeper State Machine:

Beeper State Machine
