Liviu's Homepage - Under Construction
For the time being, this website will be used for CSC418/2504 Tutorial Notes.
My notes are JPG scans. Supplementary files are generally PDFs.

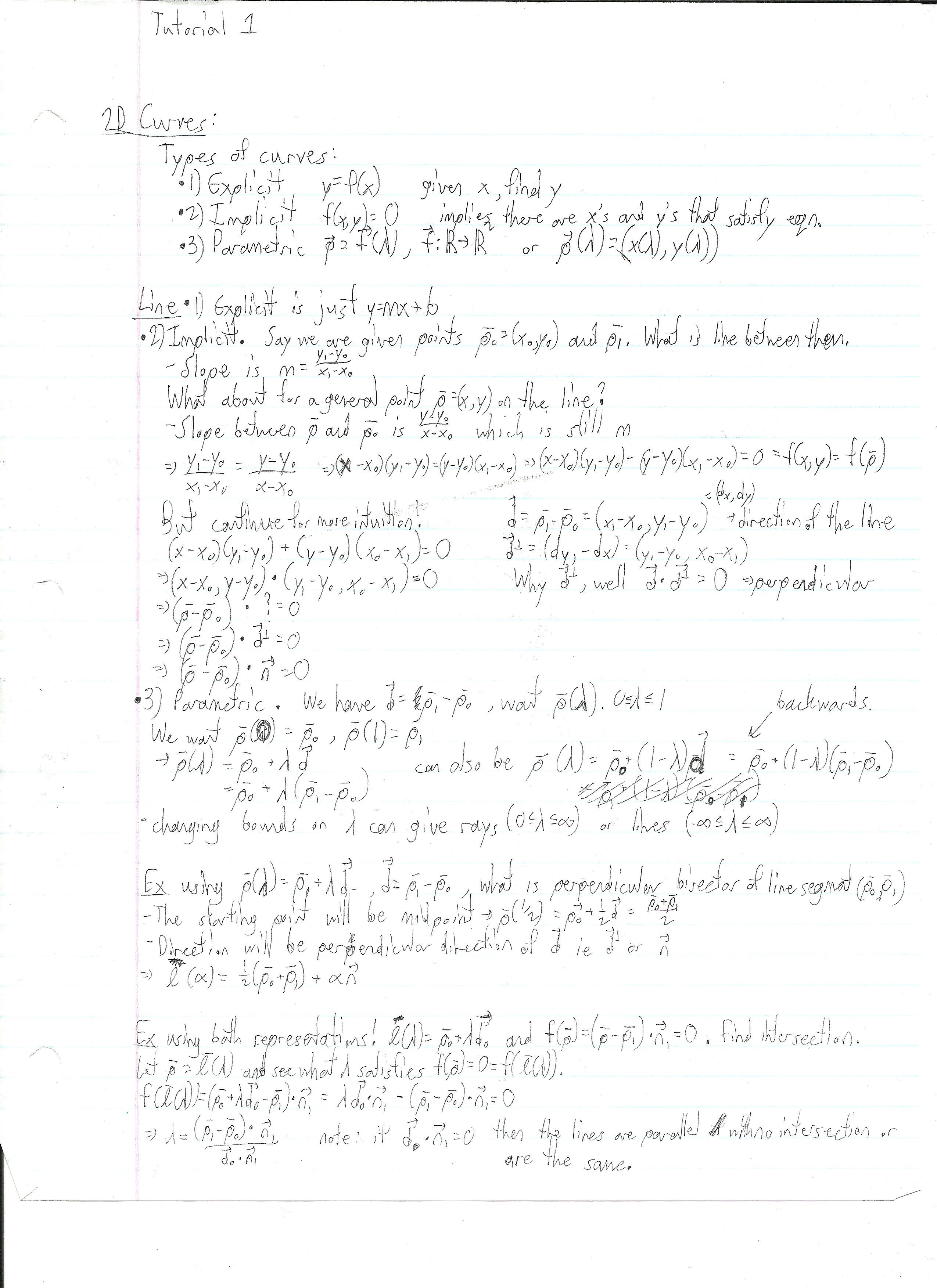

Tutorial 1 - 2D Curves and The Bresenham Line Drawing Algorithm

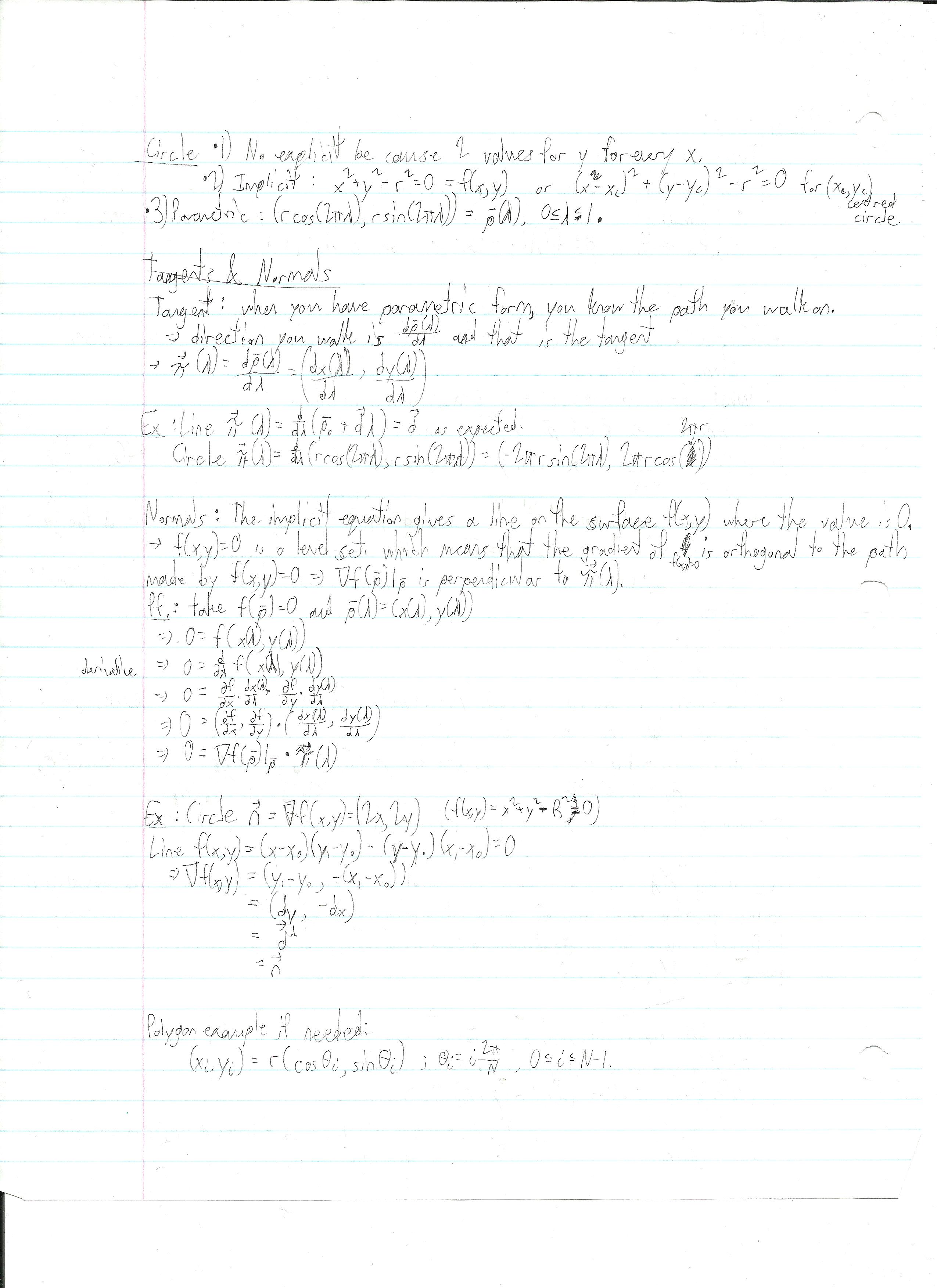

2D Curves Notes - Page 1
2D Curves Notes - Page 2

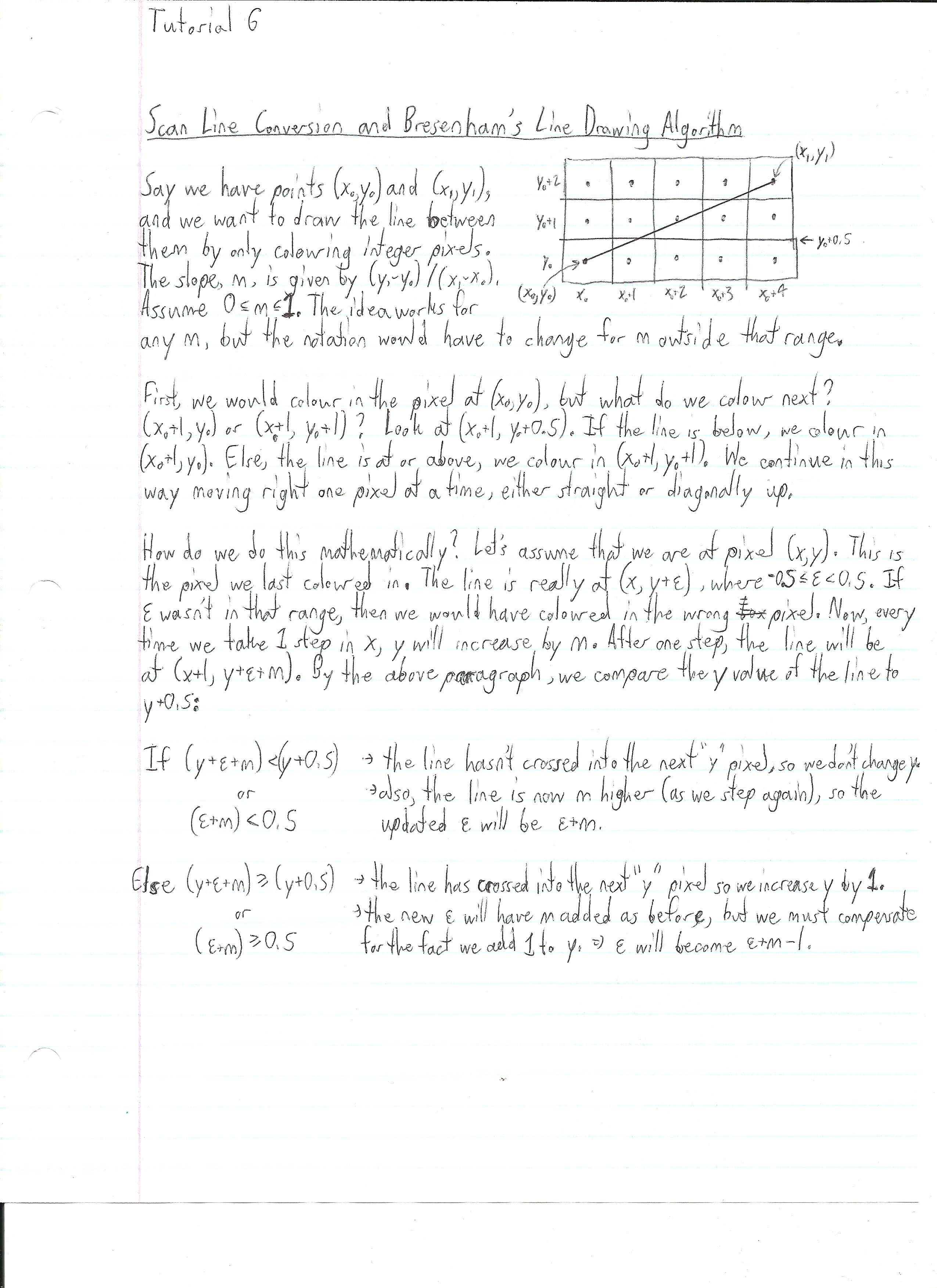

Bresenham Line Drawing Notes - Page 1
Bresenham Line Drawing Notes - Page 2

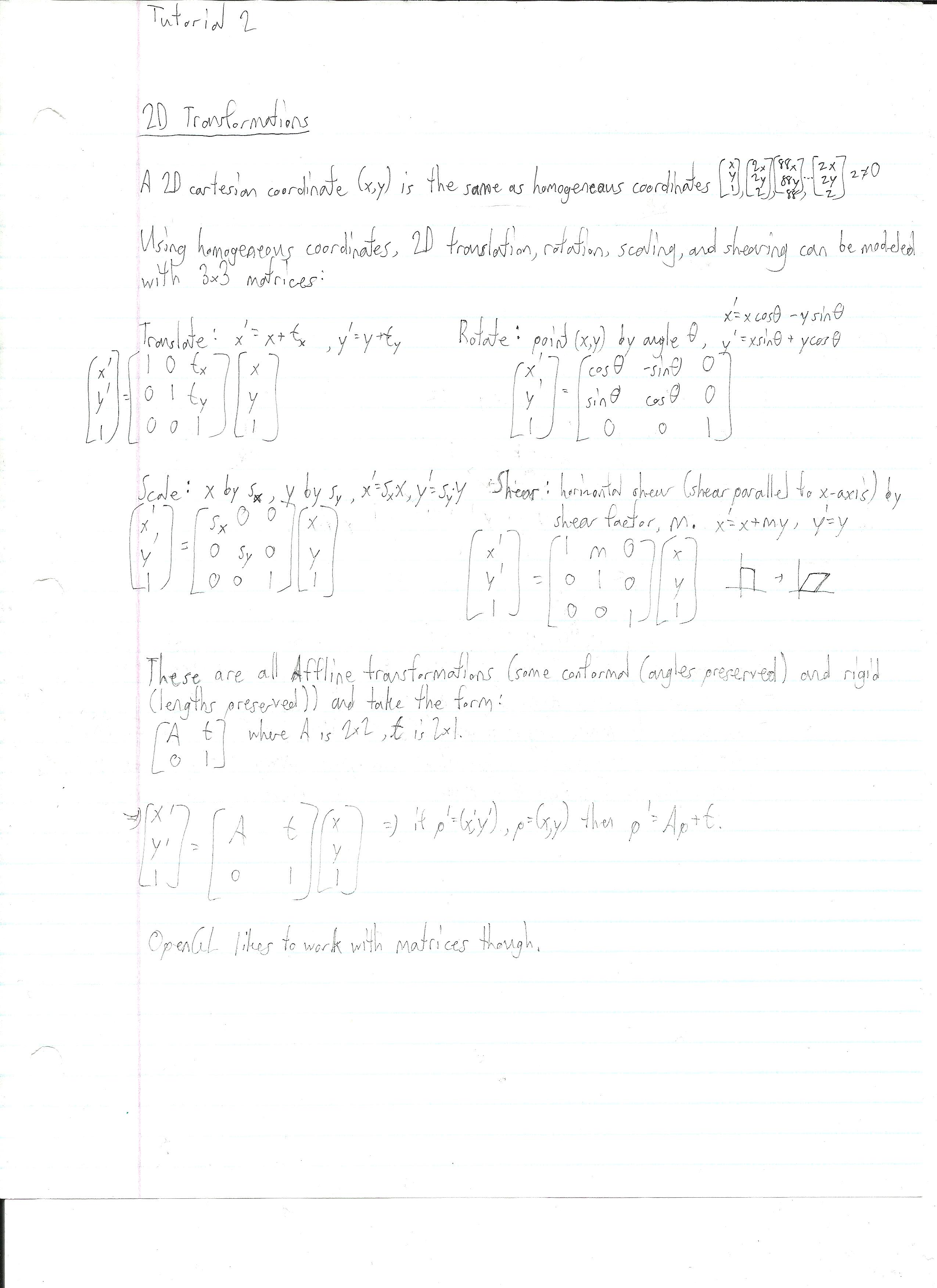

Tutorial 2 - 2D Transformations and OpenGL Programming
Notes
Slides on OpenGL from a previous year
Intro to OpenGL and Functions
Intro to C++ and OpenGL
OpenGL examples for A1 Part B
Discussion Board post about above examples

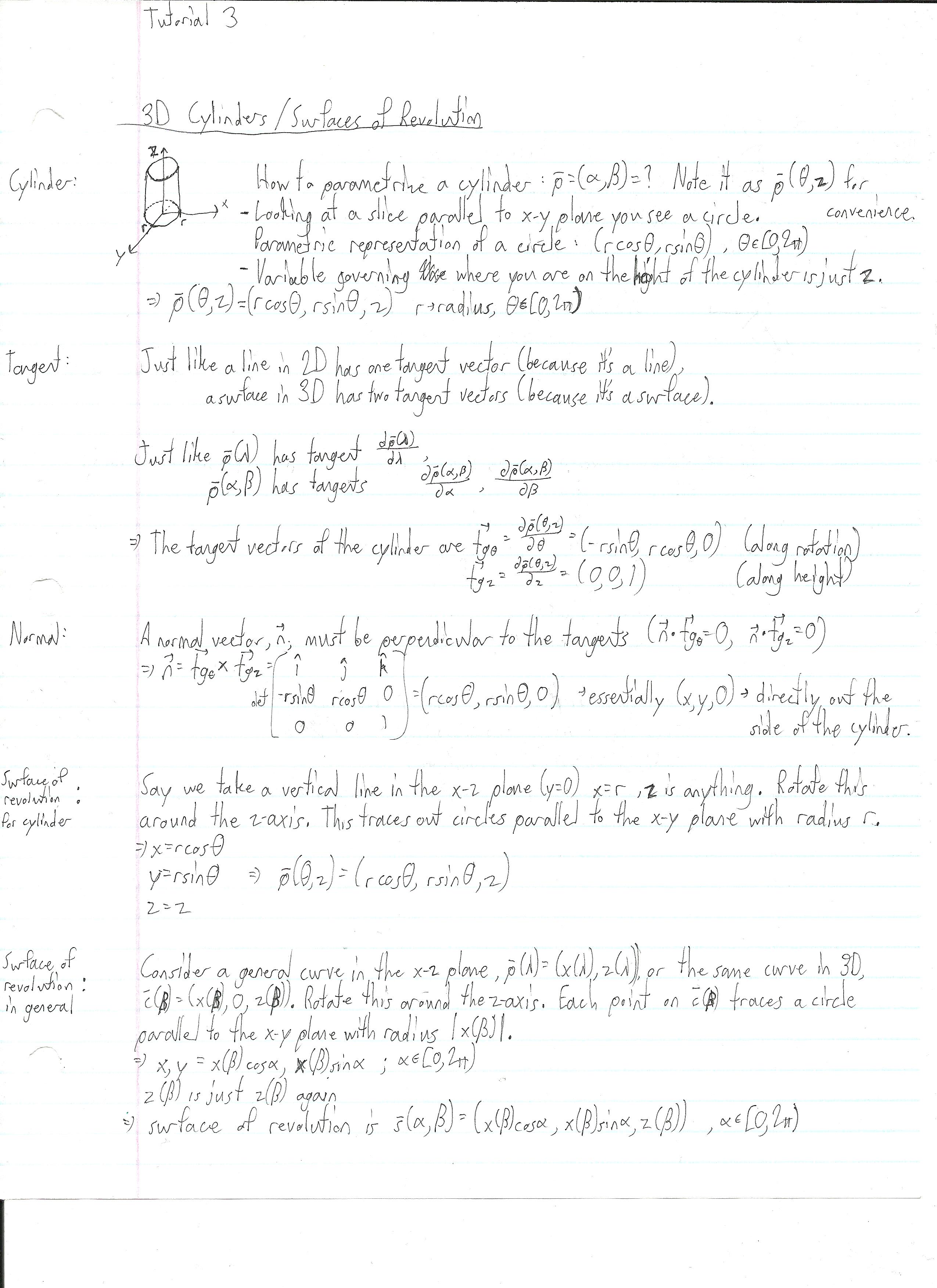

Tutorial 3 - Surfaces of Revolution and Surface Meshes

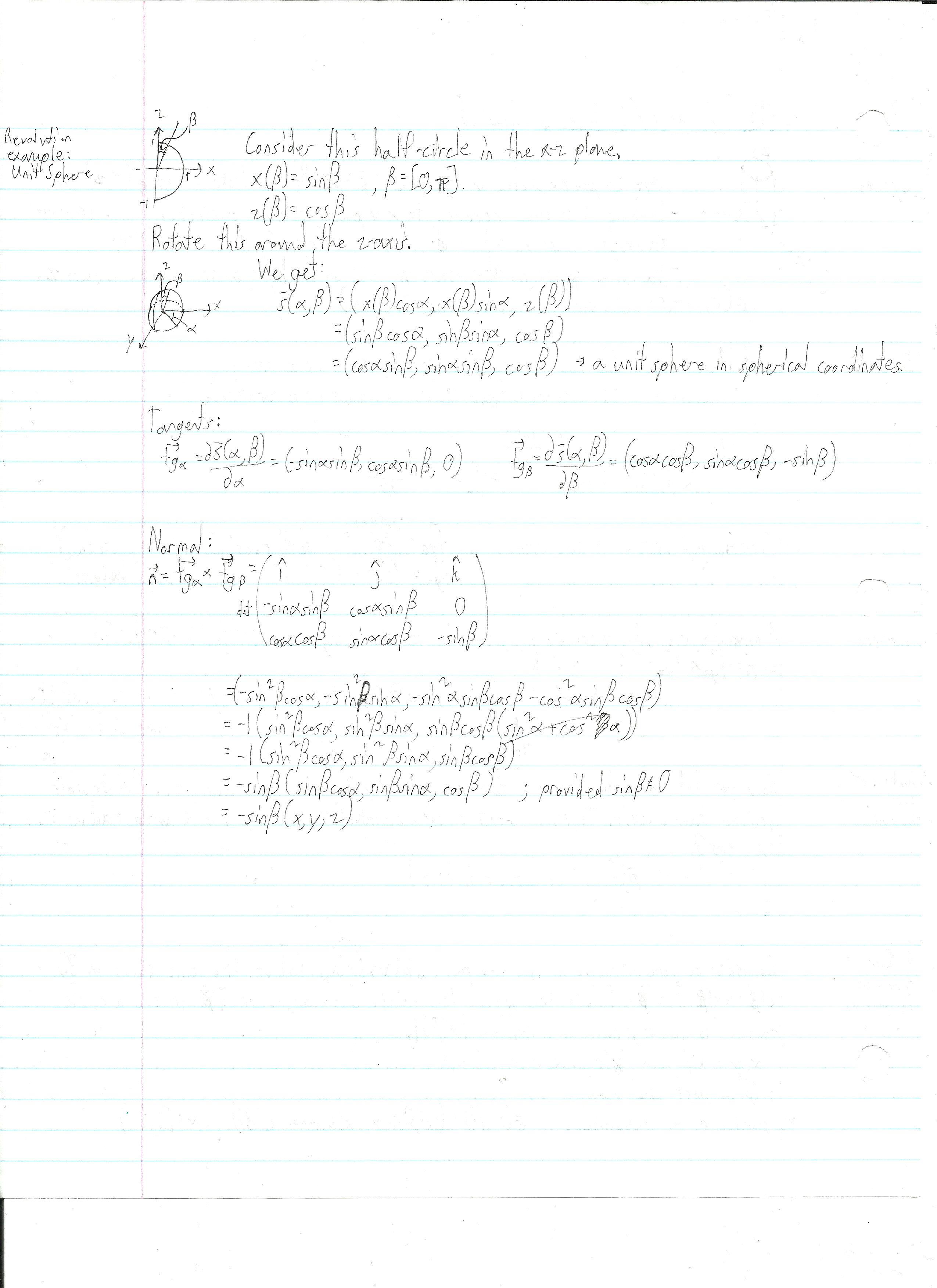

Revolution Notes - Page 1
Revolution Notes - Page 2

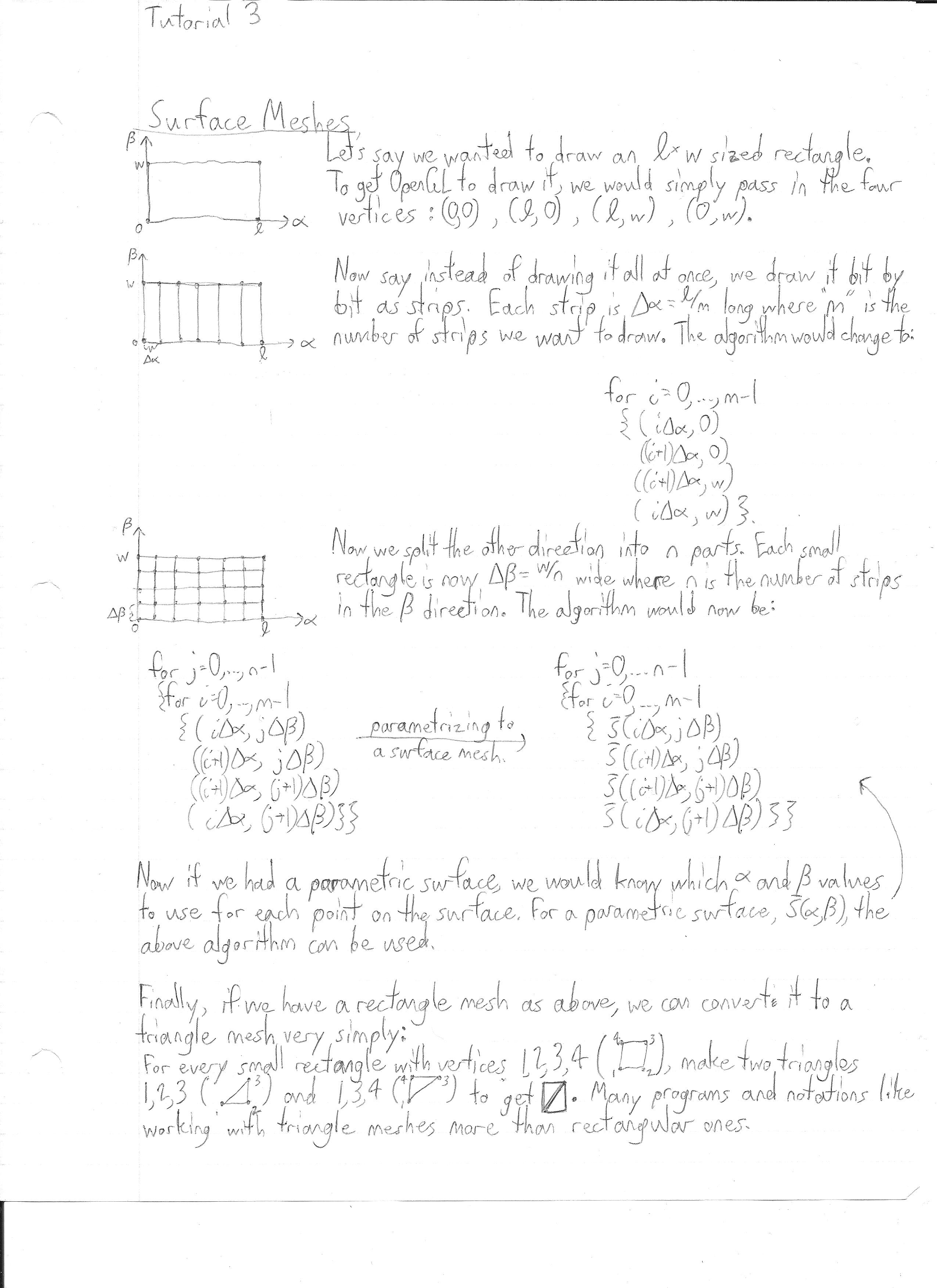

Mesh Notes

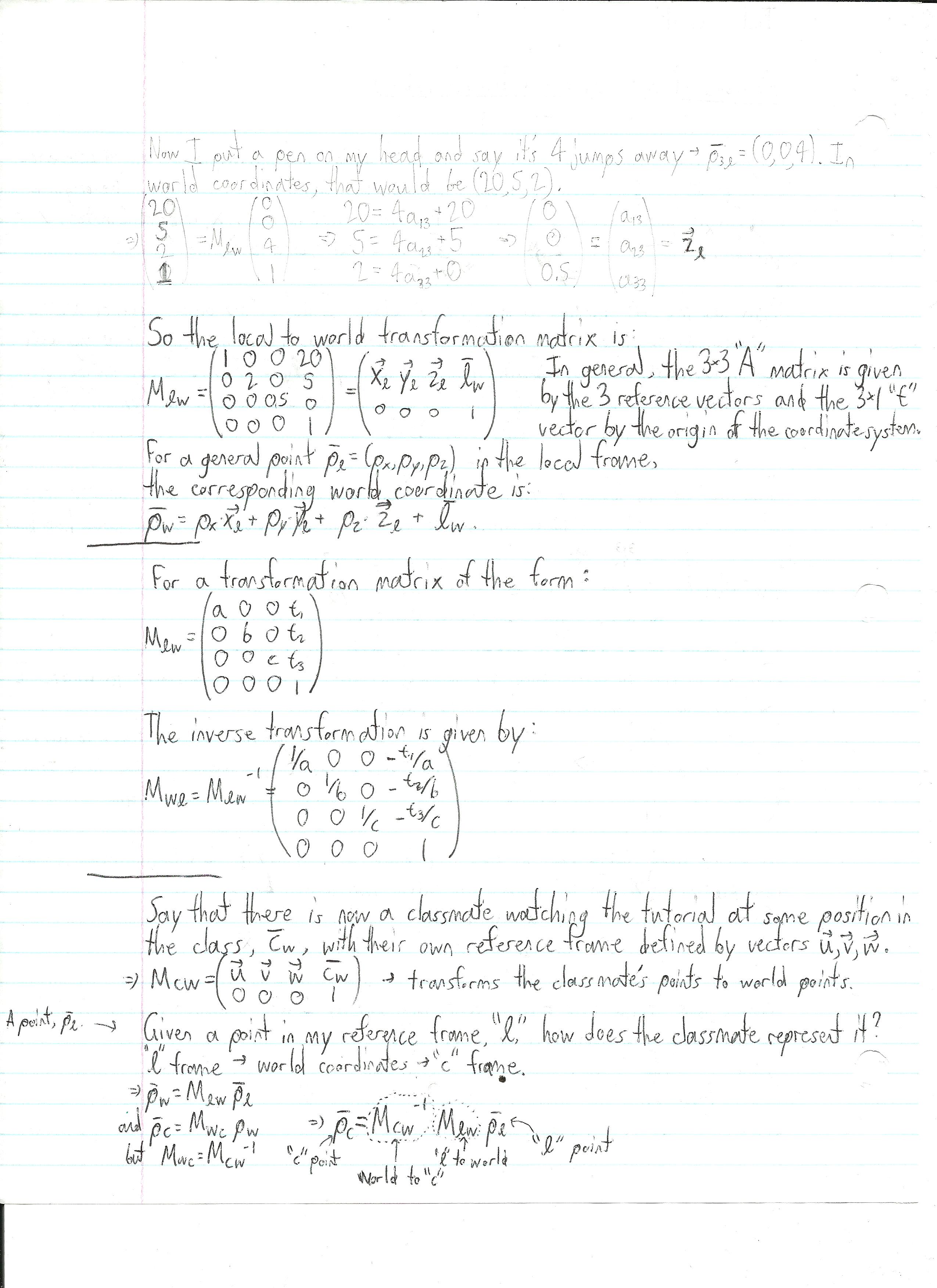

Tutorial 4 - Frames of Reference and Projection

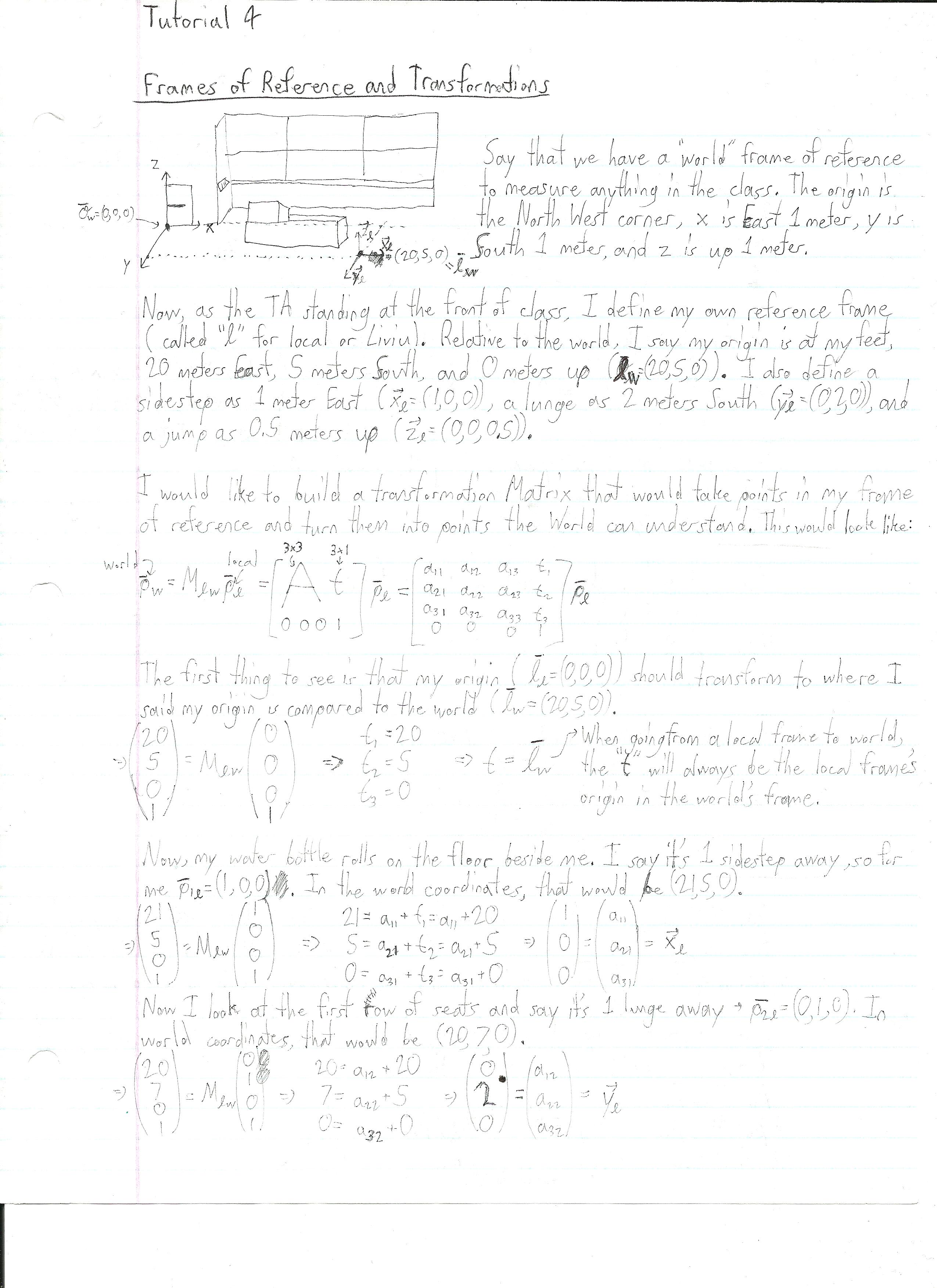

Frames of Reference Notes - Page 1
Frames of Reference Notes - Page 2

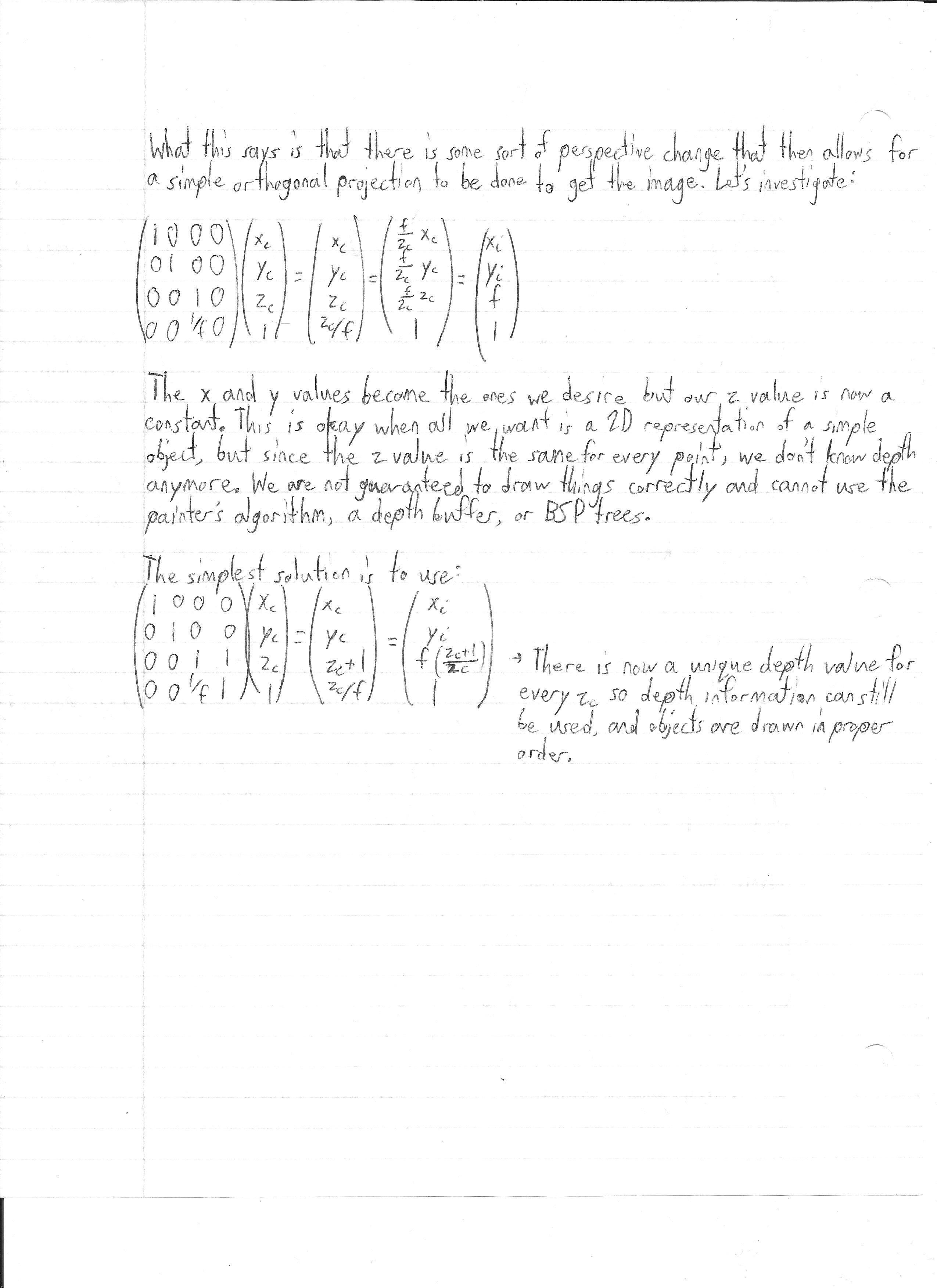

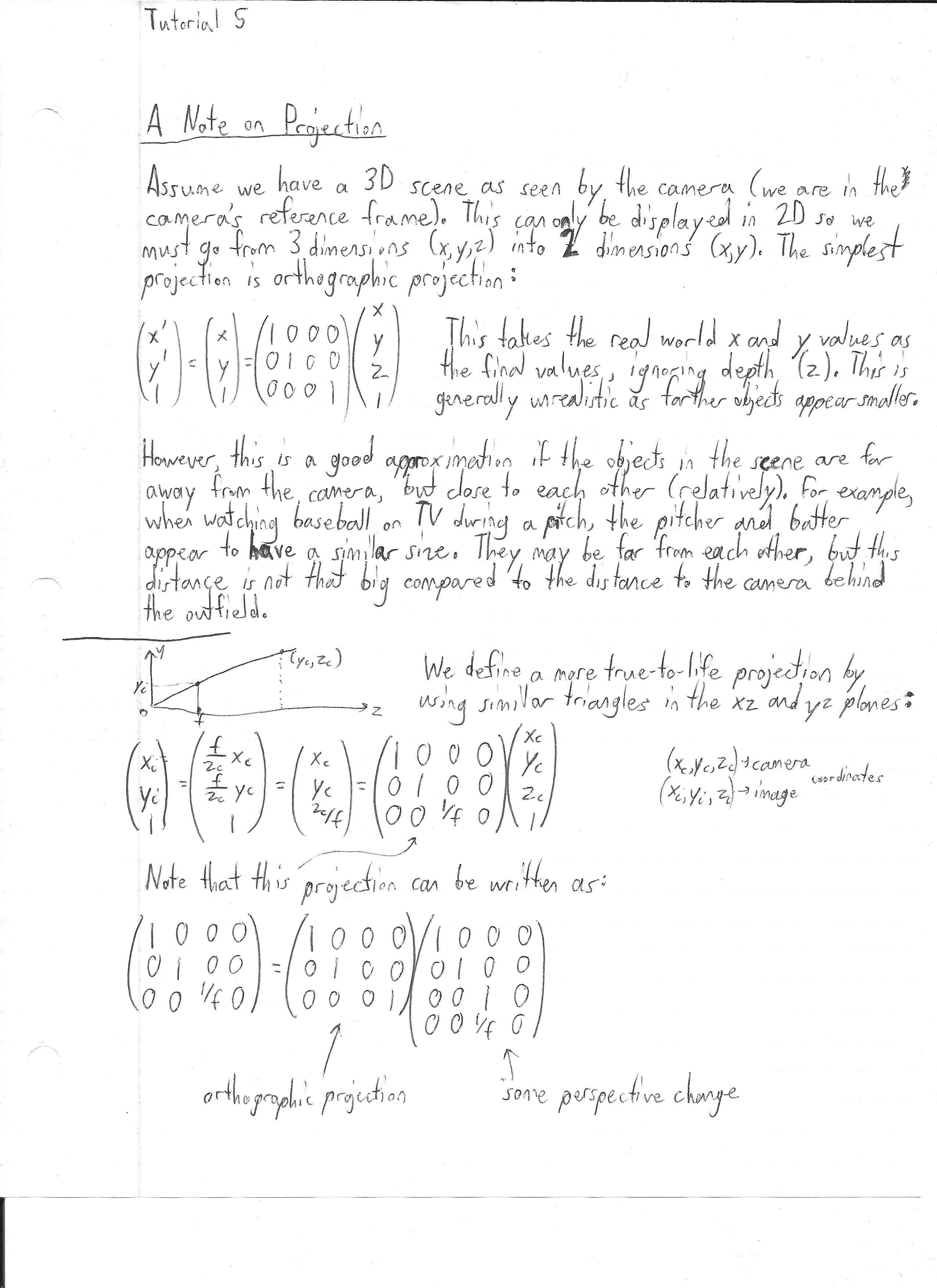

Projection Notes - Page 1
Projection Notes - Page 2
Tutorial 5 - Canonical View Volume and BSP Trees
Canonical View Volume (pages 2-11)

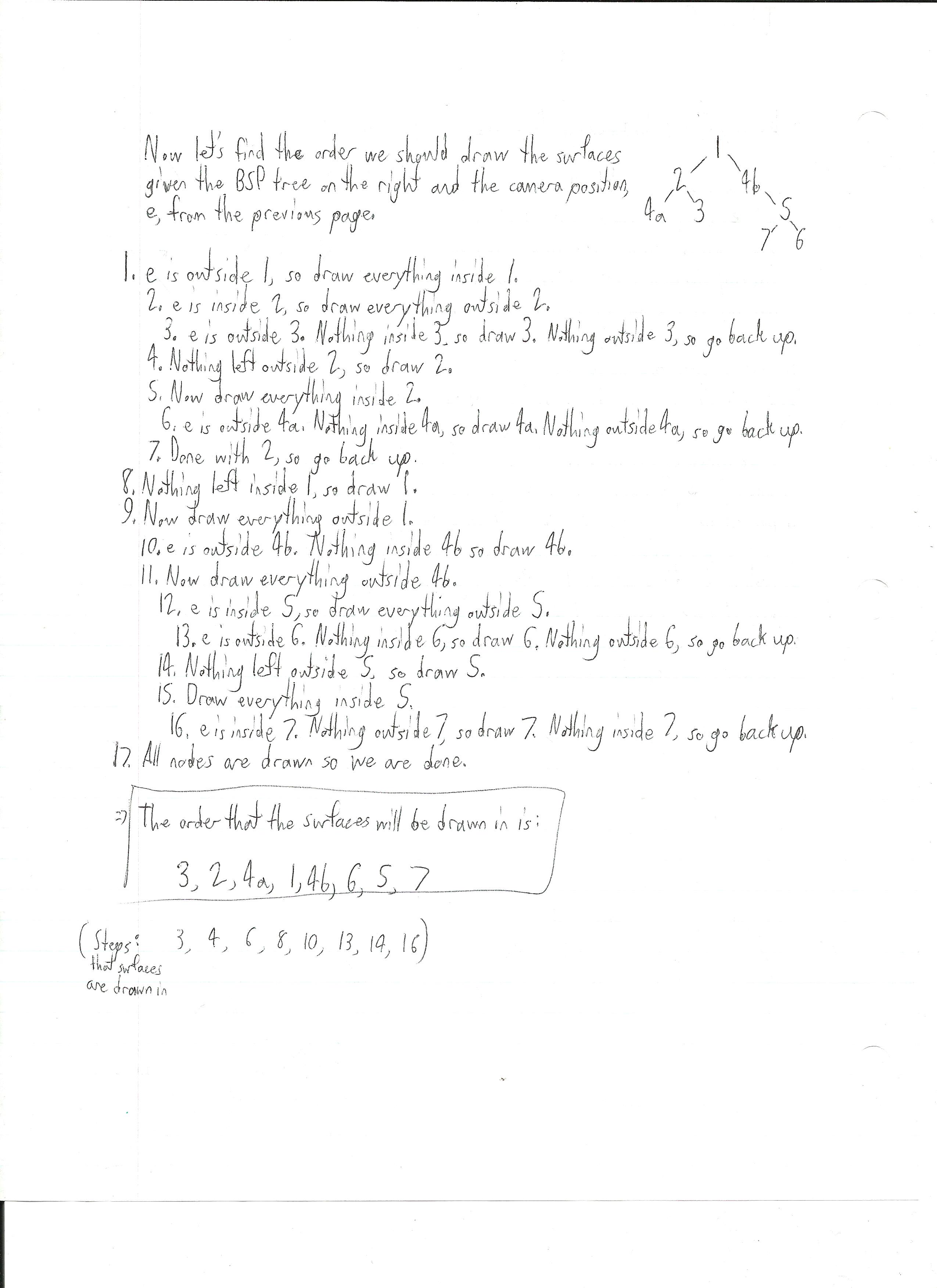

BSP Tree Full Example - Page 1
BSP Tree Full Example - Page 2
Tutorial 6 - Midterm Review
Sample problems are covered in tutorial.
Answers will not be posted.
Tutorial 7 - OpenGL and A2

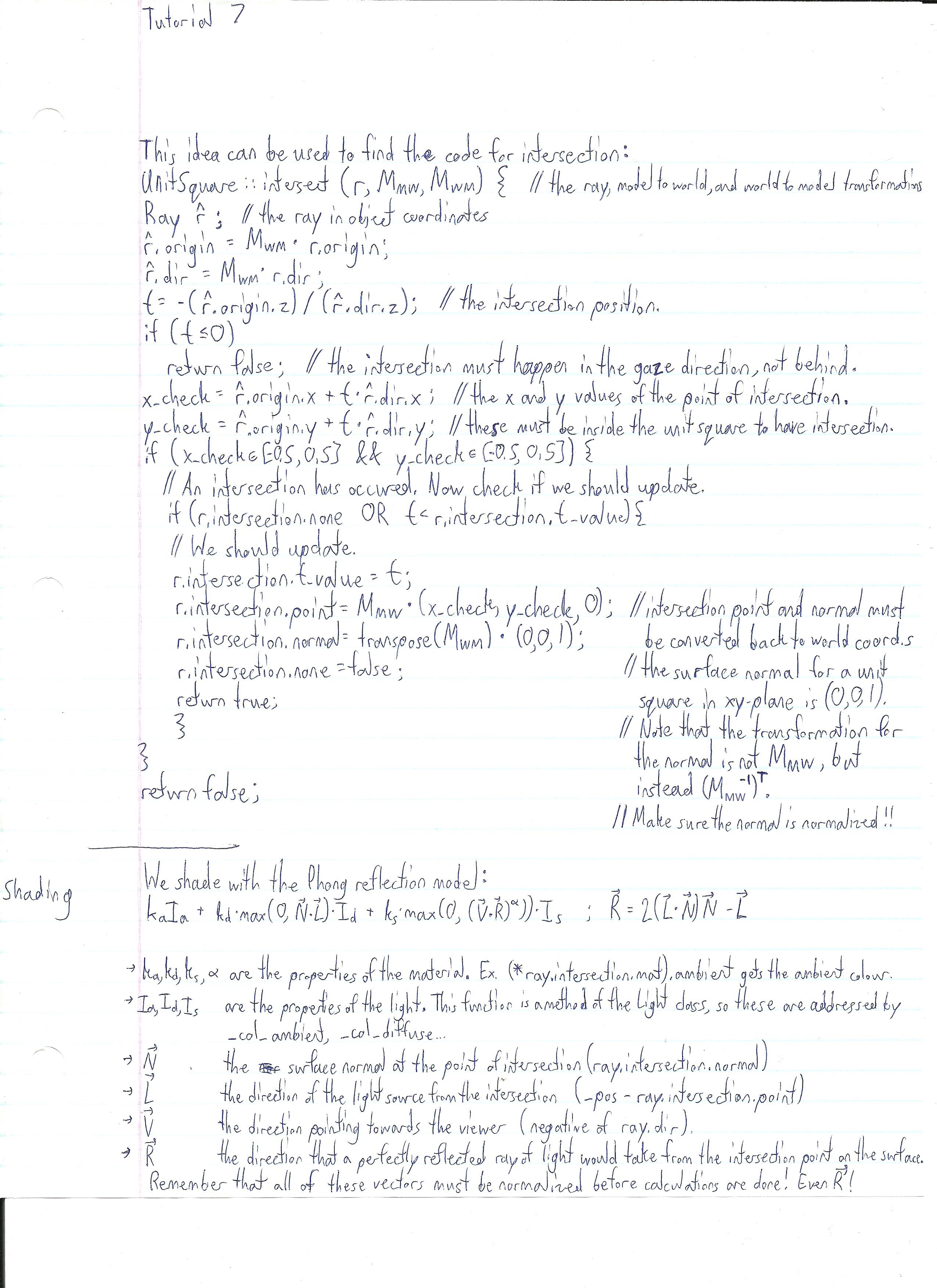

Extending OpenGL for A2
2D Texture Mapping in OpenGL (Not part of A2)

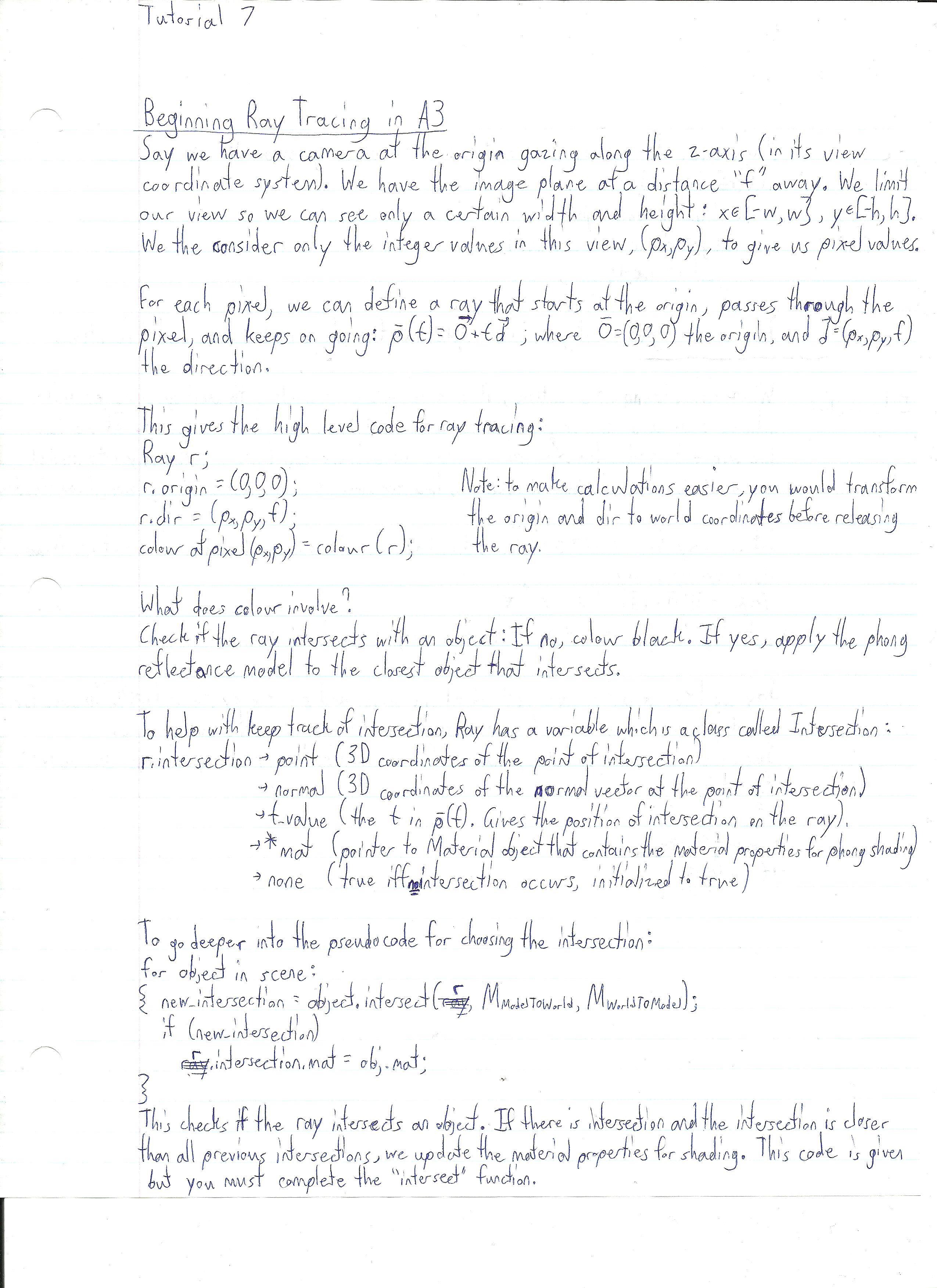

Tutorial 8 - Beginning Ray Tracing in A3
Top A3s from previous years

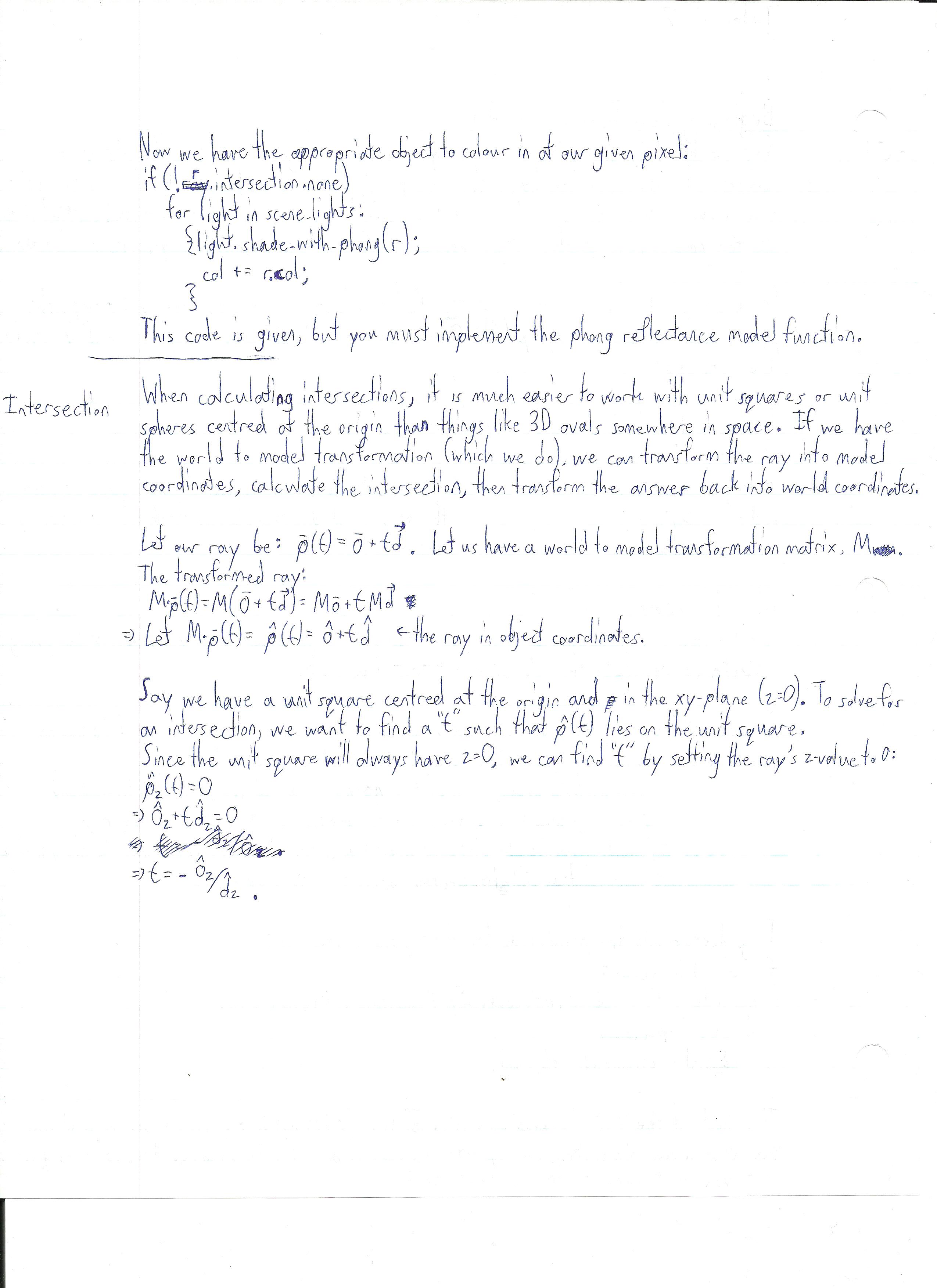

Notes - Page 1
Notes - Page 2
Notes - Page 3

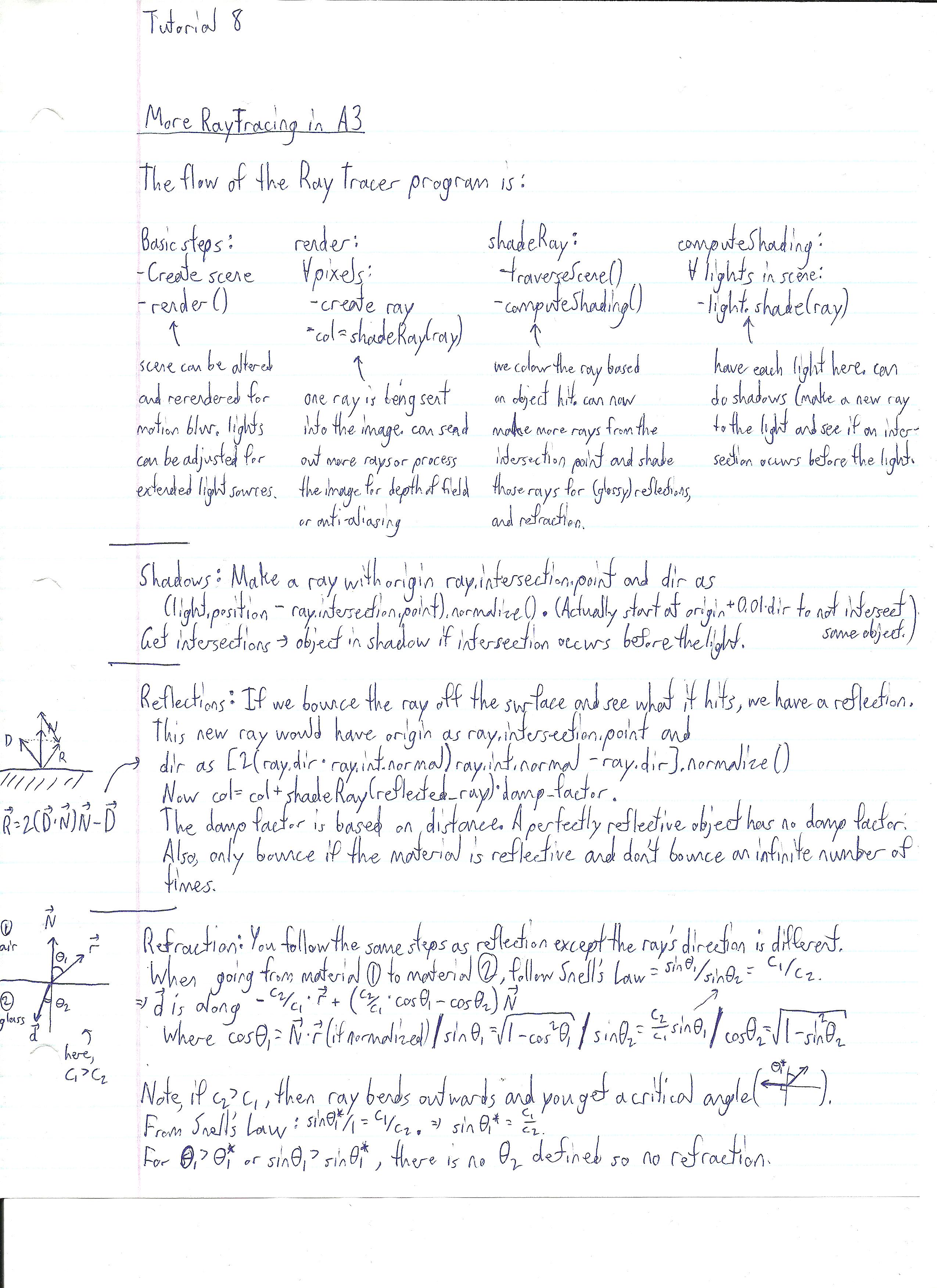

Tutorial 9 - More Ray Tracing in A3
Notes
Hints for some advanced ray tracing features
Cube (Environment) Mapping Tutorial

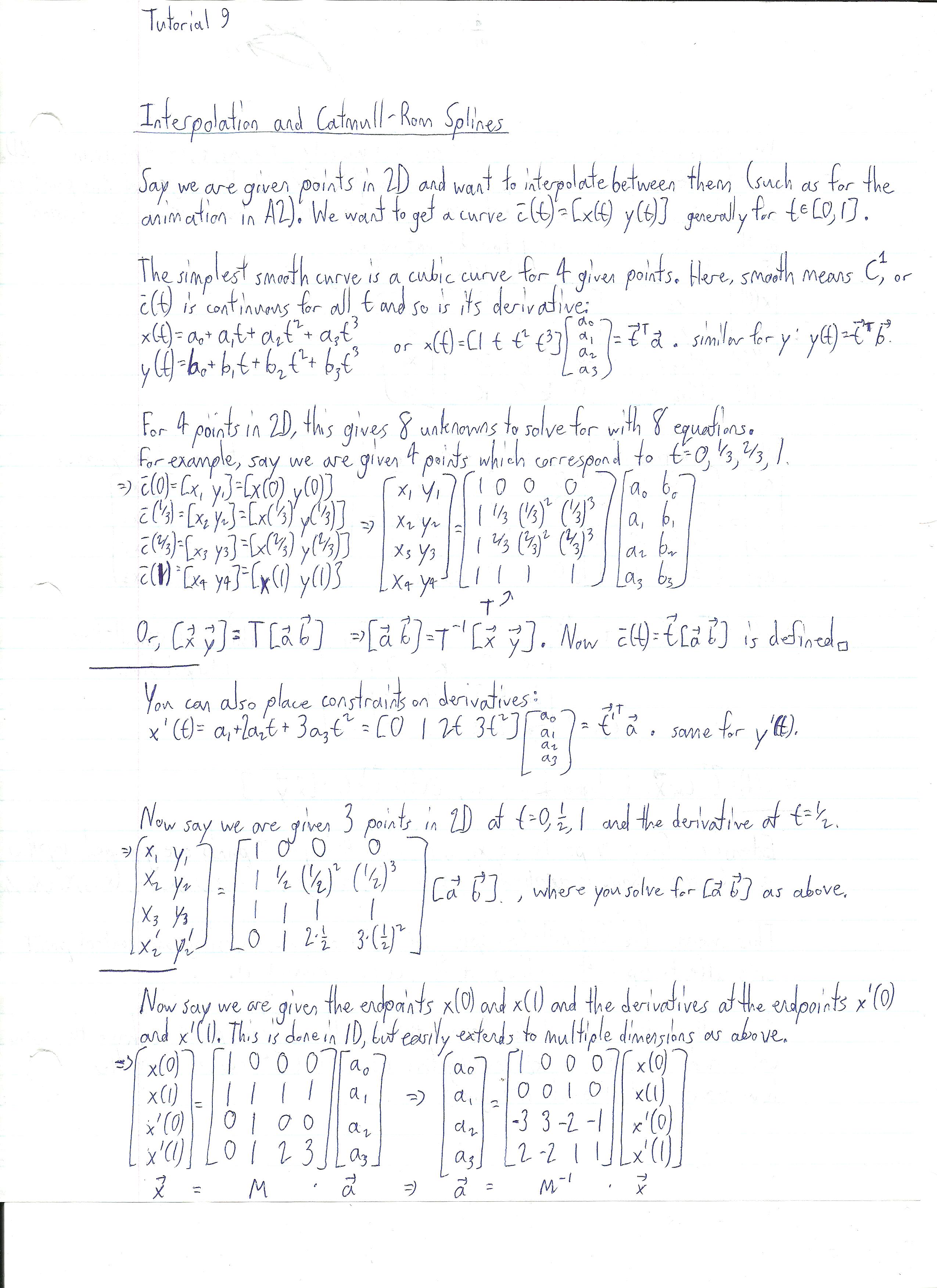

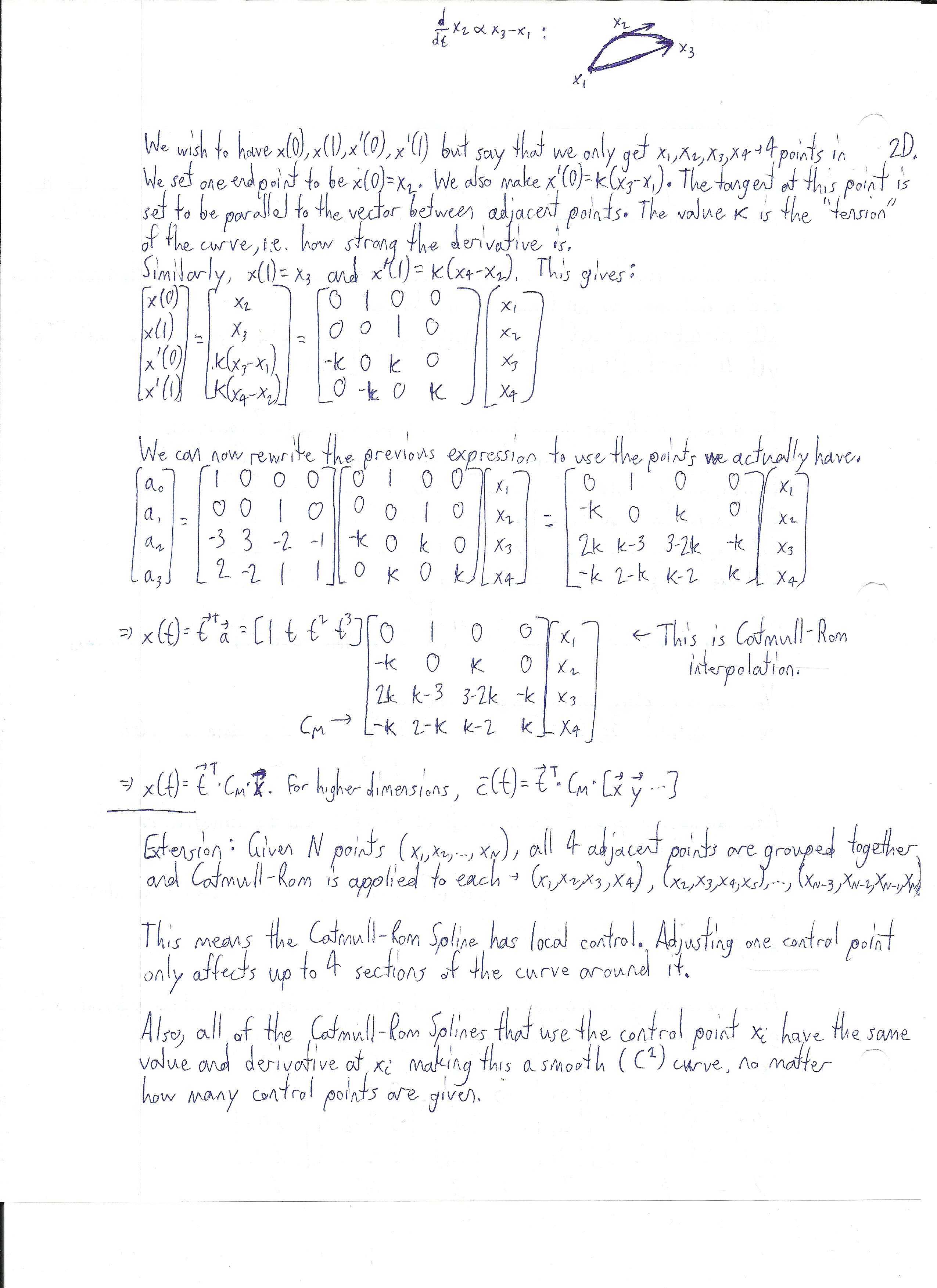

Tutorial 10 - Catmull-Rom and Bezier Splines
Catmull-Rom Splines - Page 1
Catmull-Rom Splines - Page 2

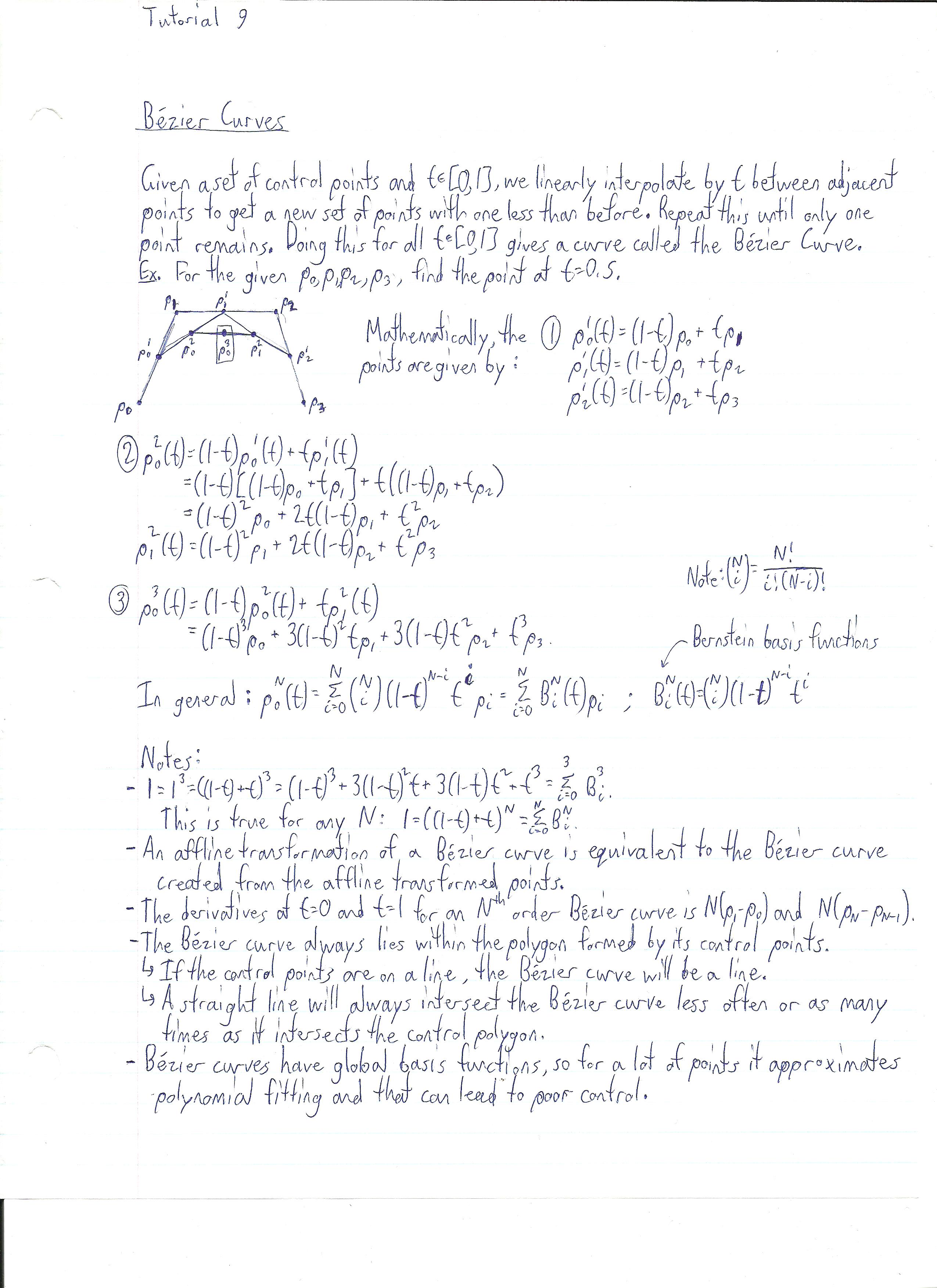

Bezier Splines
Online notes and demos provide great intuition
