University of Toronto
CSC148S--Introduction to Computer Science, Spring 1997

Assignment 1: Appointment Calendar

Due : Thursday, February 6th at 6:00 p.m., in the 148 drop boxes
This assignment is worth 12 marks towards your grade in this course.

Purpose

The main purpose of this assignment is to provide experience using modules and pointers. It also provides the opportunity of seeing that information can be stored and manipulated in different ways and that different methods may be more appropriate in different situations.

Introduction

Electronic appointment calendars are popular at the moment. You will examine two methods of implementing such a calendar. The first method uses an array, the second linked lists.

The calendar manages a working week's, i.e. five days', appointments, from the current day to four working days from today. The calendar has the following operations: load calendar, save calendar, book appointment, fit appointment, find appointment, cancel appointment, view day, view week, clear day, clear week and next day.

Each appointment has a name, start and finish time, and may be ``fixed'' or unfixed. A fixed appointment, once booked, cannot have its start and finish times changed. The start and finish times of an unfixed appointment can change but the duration cannot. That is, after an unfixed appointment is booked, it can be moved ahead or back to accommodate the booking of a new appointment.

Array implementation

This implementation uses a two dimensional array of records. Each location in the array represents a 30 minute period. The array has 16 rows for the different time slots, and 5 columns for the different days. The rows represent the following time slots: 9 am-9:30, 9:30-10, ... 4 pm-4:30, 4:30-5. Each record can store the information associated with a single appointment. For time slots with no appointment scheduled, the record stores an empty string in the name field. While the rows of the array represent half hour time slots, note that the array records include fields for start and finish times; this allows appointments that do not start or finish exactly on the hour or half hour. If an appointment uses part or all of more than one slot, then its information is stored in several identical records, stored in each slot that it uses part of. For example, an appointment, ``Research'' that starts at 9:15 and finishes at 10:15, would be represented by three identical records (each with start time 9:15 and end time 10:15) stored in the 9-9:30, 9:30-10 and 10-10:30 locations in the array.

Linked list implementation

Each day's appointments are stored in a linked list of appointment records, ordered by the time of the appointment. There is a header list, stored as an array of five pointers, with one pointer for each day in the calendar. A header pointer points to the linked list of appointments for that day.

Each list of appointments includes a ``dummy'' record at the beginning and end. These records do not represent actual appointments. They are there because they simplify the code, reducing the necessity for special cases at the beginning and end of the lists.

Exercise (not to be handed in): A sample file of appointments is available on the web page. For each of the two data structures, draw how it would look when storing these appointments.

Architecture of the program

We have started a program that solves this problem. It is divided into several files which are available on the course web site. The program includes several modules along with the main program. The major parts are:

• module ApptCalendar: This module stores and manipulates the data structure that stores the appointment calendar. There are two different versions: the array version and the linked list version.
• module TimeModule: This module contains subprograms used to manipulate time values.
• module Queue: This module implements the queue abstract data type (see BHH 6.1-6.2 or Standish 7.3). You will need to use a queue when implementing the view operations (see below).
• main program: The main program implements the user interface and interacts with the modules.

Our program includes the user interface, and the operations that load the calendar with any appointments stored after a previous run, write the appointments out to a file, book appointments, cancel appointments, clear a day, and clear a week. The other operations are not implemented.

Your assignment

For both implementations, you must write the missing operations. You may complete the assignment in any order. For example, you may want to complete the missing operations in the array implementation first, then continue with the linked list implementation. While you are making your additions to the program, think about the advantages and disadvantages of each implementation, and about your testing strategy.

You must not change the code that is provided. Just make the additions that are listed below. In particular, do not change the module signatures!

Part A

Write the view day and view week operations for both implementations. The view day operation prints all the information for appointments for a specified day. The appointments should appear in table form, with a row for each time slot and a column for each field: appointment name, start time, and finish time.

The view week command prints a week's appointments in a table, with a row for each time slot and five columns for days. To reduce the size of the display table, only the appointment names are printed.

With the linked list implementation, it is possible to schedule several short appointments that occur in a single time slot. But several appointments cannot be displayed within one spot in the display table. Here is how to address this problem. Whenever more than one appointment occurs in a time slot, print a footnote marker in the table (*1, *2, *3, etc.), and display the appointment information as a footnote below the table. You will need to remember which appointments need to be printed in footnotes because they cannot be printed until after the whole table is printed. (Why?) To do this, use the queue module to store a queue of footnotes to be printed. With each footnote in the queue, store the marker you printed in the table (so you can repeat it below the table as a cross reference).

Not all details regarding the exact appearance of the display have been specified. Your solution must stay within the constraints described above, but other design choices are up to you. If you are concerned that you are straying outside the acceptable limits, discuss your output format with your instructor or TA.

Part B

Write the fit appointment operation for both implementations. This operation must find a period of time that a given appointment will fit into. If there is no continuous period of time large enough to accommodate this appointment, previously booked appointments that are not fixed can be pushed forward or back to create a period that will accommodate this appointment. However, the order of all previously booked appointments cannot change and no fixed appointments can move. If enough time is found to satisfy this appointment, it is booked and the start and finish times are returned. Otherwise the fact that the appointment will not fit is reported and the calendar remains unchanged.

Part C

Implement the next day command for both implementations. This operation changes the current day to the next working day and clears the now previous day's appointments. The calendar can now accept bookings of appointments four working days from the new current day.

Part D

Improve the comments and add preconditions to the subprograms that are defined in the Time module. Your preconditions should specify the conditions that must be met for the subprogram to work correctly, i.e., to work as stated in the comments.

Part E

For this assignment, you will not write a a full report as described the Course Handbook. Your report will contain only two things: a section describing your testing strategy, and a ``Bugs and Missing Features'' section. Here you should list any problems that you were unable to solve, and any parts of the assignment that you were unable to complete. Even if you consider your assignment complete and problem free, you must include this section and state that there are no bugs or omissions.

Optional Bonus

If you have completed the text based version of the assignment and want an extra challenge, consider replacing the text based interface with a graphical interface, using mouse-based input with buttons for the different commands, and dialog boxes for the input of appointment information. Do not change the appointment calendar module to accommodate your graphical interface modifications.

The bonus will be considered for extra points only if you also hand in a text based version that is complete and thoroughly tested.

Do not get carried away with the bonus problem. You probably have other courses and responsibilities that need your attention.

How to hand in your assignment

This assignment is to be handed in on paper. If you have done the optional bonus, you will also hand in a diskette.

Hand in the following:

• For parts A, B and C, hand in a printout of your two versions of the ApptCalendar (clearly highlight your additions with a distinctive marker) and a thorough set of test runs. For each test run, hand in annotated printouts of your initial calendar data, the input file (containing commands from the user), the resulting output, and newly-stored calendar data file.
• For part D, hand in a printout of the Time module body, with your improved preconditions and comments.
• For part E, hand in your report.
• For the bonus, hand in a printout of your main program file that includes your new code. In addition, hand in a diskette containing only: a single copy of the program files for this assignment, and one sample file of initial appointments. Include just the array version of the calendar module. Your main program must be called main.t or main.c, as appropriate. If you do not follow these instructions, you will forfeit any bonus marks.
• Fill in the cover sheet and attach it securely to the outside of the envelope containing your assignment.

Caution: Don't expect your marker to go searching for parts of your solution. Clearly label all parts of the assignment and highlight your additions.

Some advice

When reading the code that we have provided, focus first on the interface to each module. Ideally you should be able to use a module without looking at its implementation details.

Once you understand the program, develop a description of your solution in English. Test the logic of your solution on paper and make any corrections. Only then translate the solution into code.

How your assignment will be marked

Unlike assignment 0, this assignment will be marked by a human. This means that your code will be graded for style, comments, design, and adequacy of testing; just ``working properly'' is not enough for your program to earn full marks.

It is your job, in your testing, to provide evidence that will convince the marker that your program works. If you hand in no test runs, or poor testing, you will get few or no marks for correctness.

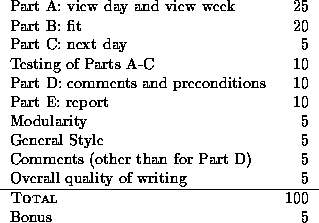

Below is the tentative marking scheme for the assignment. Use it to gauge where to focus your efforts.
