Visual abstraction and neural representations

Overview

We take photographs from the Toronto Scenes dataset and morph them toward sketches. Retrieval at the sketch pole is not the same across ViT-B checkpoints: DINOv3 stays high on category R@1; MAE does not.

Diffusion Abstraction Spectrum

Source images are from Toronto Scenes. We morph each scene with SDXL + ControlNet along λ ∈ [0, 1] (line drawing → photograph). The probe set used here is 475 scenes × 10 levels (4,750 images). Models are scored with zero-shot category and instance retrieval along the spectrum.

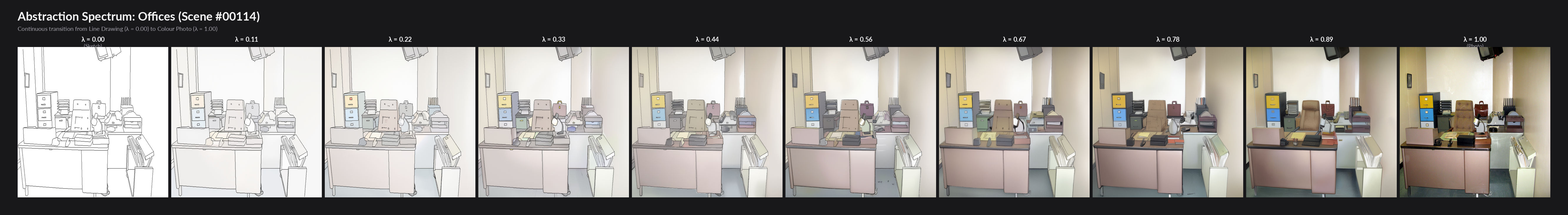

One office scene, λ = 0.00 to 1.00.

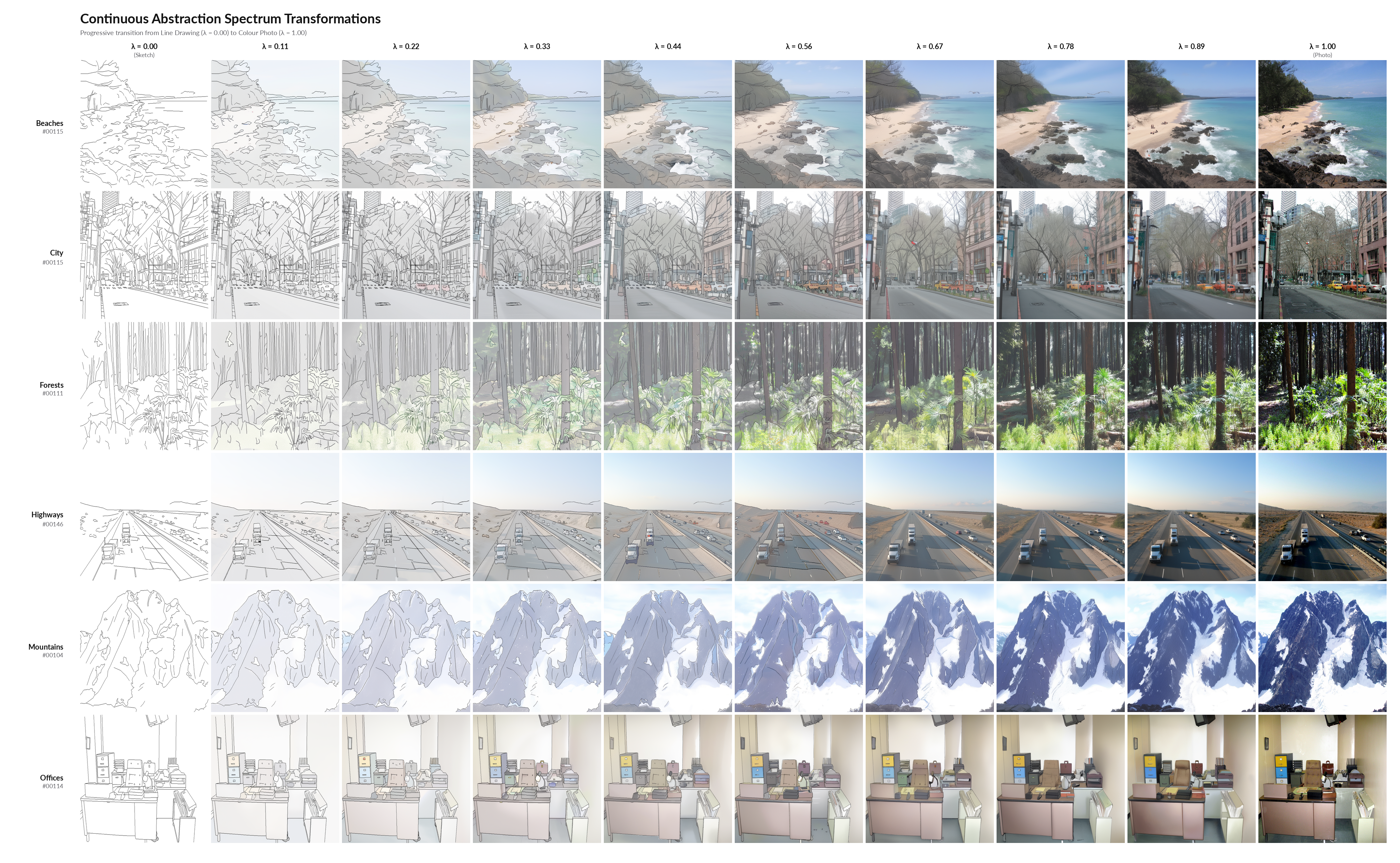

Several scenes at multiple λ values.

Generation pipeline

Every one of the 475 scenes goes through spectrum_pipeline.py once and comes out as 10 images, so 4,750 total. Levels are λ = i / (n_levels - 1) with n_levels = 10: 0.00, 0.11, 0.22, and so on up to 1.00. Seed is fixed at 42 for the whole run. The strip and grid above are outputs of this script.

Inputs per scene

• Photograph loaded as RGB and resized to 1024×1024.
• Edge map: if a companion {stem}_LD.png exists it is used and inverted, giving white lines on black, which is what ControlNet scribble expects. Otherwise we run HED (lllyasviel/Annotators). Canny is a flag in the code; HED is the default used for the paper numbers. The edge map is resized to 1024×1024 as well.
• Prompt: if the caller does not pass one, BLIP (Salesforce/blip-image-captioning-base) captions the photograph. BLIP is unloaded before SDXL is built, otherwise both do not fit in VRAM.

Models

SDXL base (stabilityai/stable-diffusion-xl-base-1.0) with xinsir/controlnet-scribble-sdxl-1.0, Euler ancestral scheduler, fp16, VAE slicing and tiling on, model CPU offload on CUDA. One pipeline is loaded and reused across all scenes in a batch.

What λ actually controls

Two knobs move together. The img2img init image is a straight pixel blend, start_image = Image.blend(edge_rgb, natural, alpha=λ), so λ=0 starts from pure edges and λ near 1 starts from something very close to the photograph. The ControlNet conditioning scale is ccs = 0.9 - (λ * 0.85), which runs from 0.9 at λ=0 down to 0.05 at λ=1: the line drawing is enforced hard at the abstract end and barely at all at the natural end.

Denoising strength is fixed at 0.35 at every level, with guidance_scale = 7.5 and num_inference_steps = 50. That is deliberate. The abstraction level comes from the blend and the ControlNet scale, and diffusion is only there to make the blend look like a coherent image rather than a photograph with lines drawn on it. At λ ≥ 0.99 generation is skipped entirely and the original photograph is copied, so the λ=1 end of the spectrum is real data, not a reconstruction.

Outputs and validation

Each scene gets its own directory holding lambda_{lam:.2f}.png for the ten levels, plus edges.png, caption.txt, and validation.json. Validation scores every level against the natural photograph with LPIPS (alex) and SSIM at 512, then checks that LPIPS is monotonic walking from λ=1 back to λ=0. A scene that fails that check usually means the edge map was bad, and it is worth opening by hand before the scene enters the retrieval set.

The 475 source photographs used for retrieval are the Toronto Scenes images on this page; the pipeline README licenses the DAS release as Places365-derived. A second script, cp_ld_pipeline.py, runs the same construction for paired CP/LD stems with BLIP-2 captions, and is not used for any number reported here.

Retrieval across λ

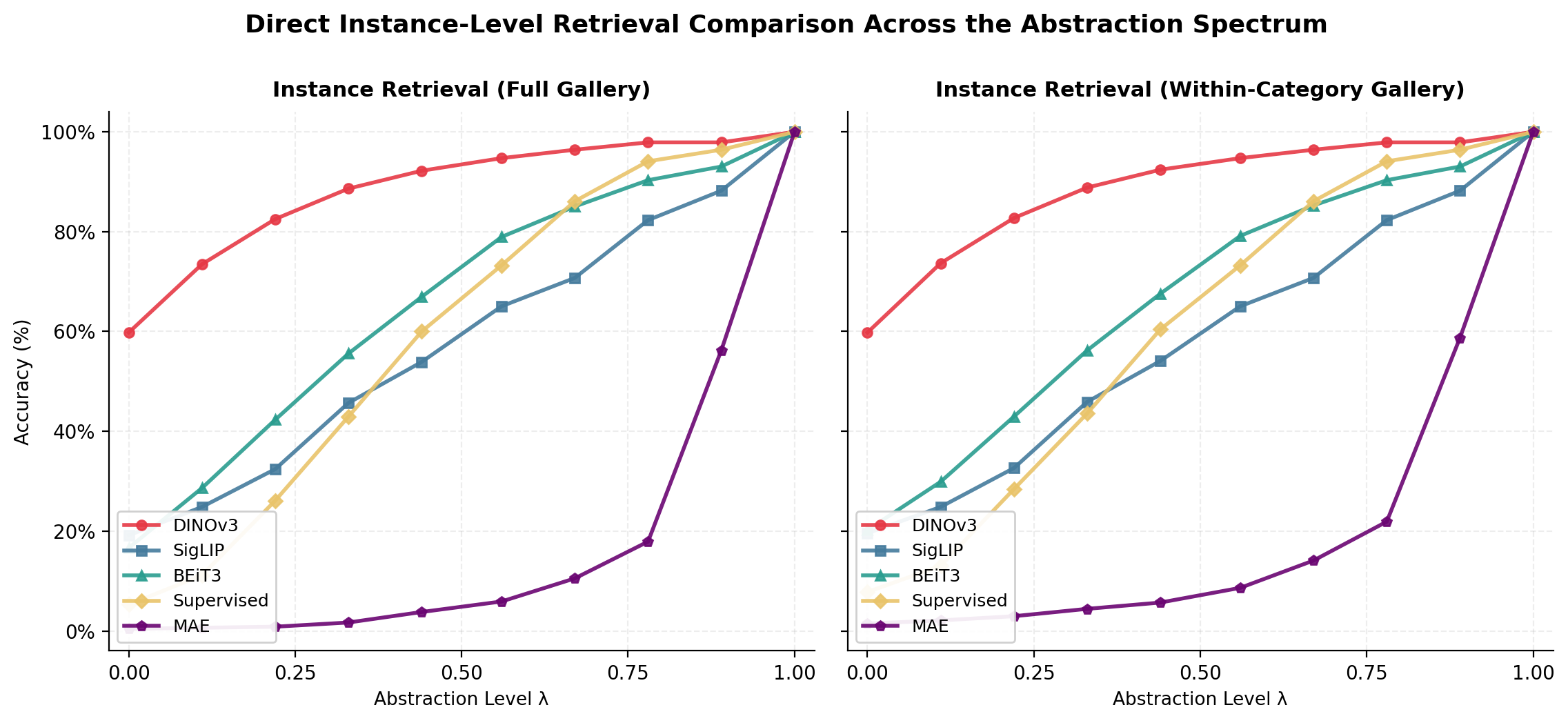

Instance retrieval across λ.

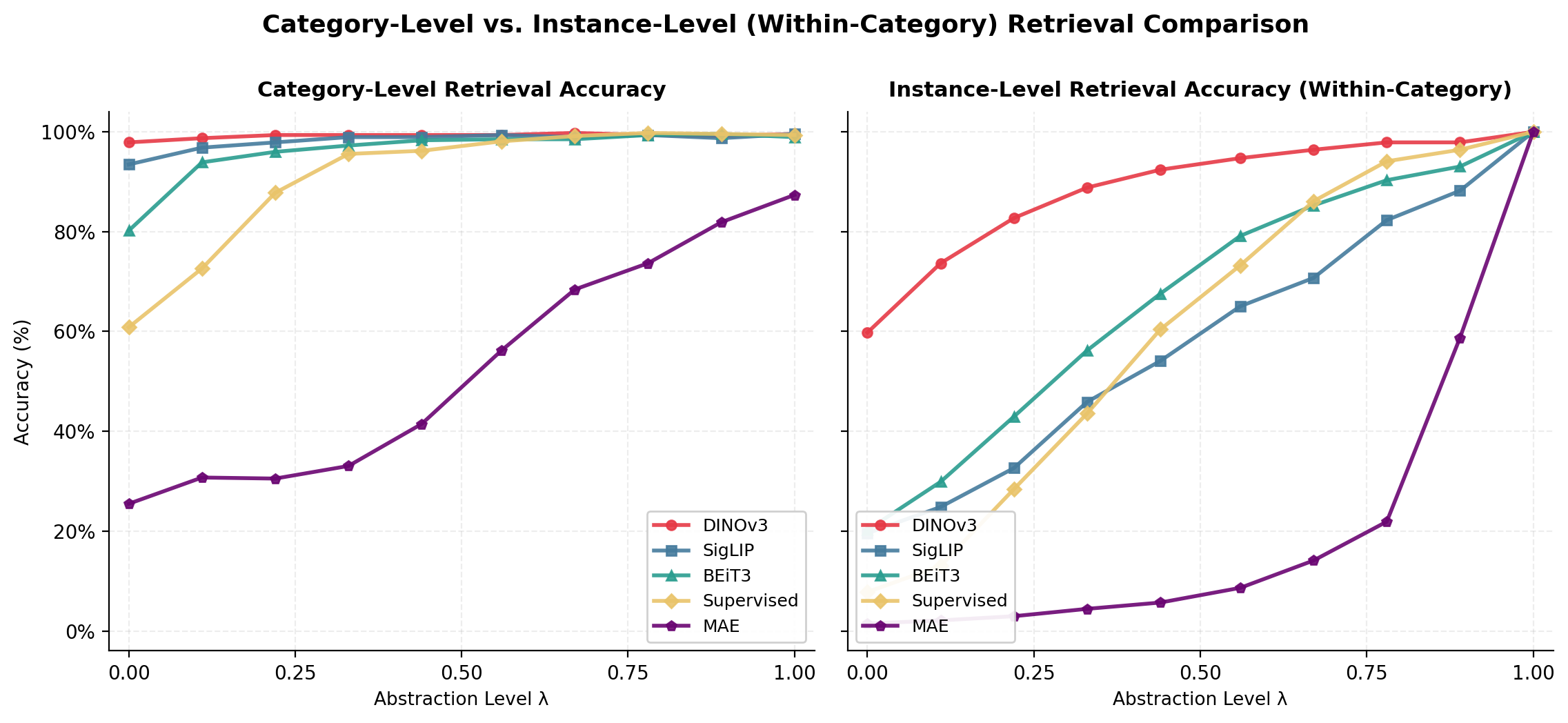

Category vs instance protocols.

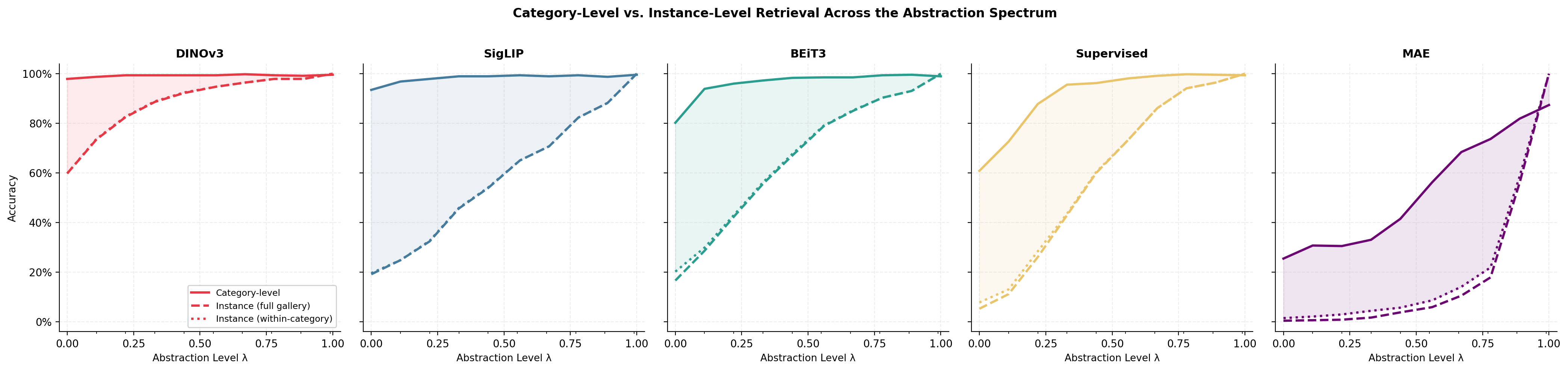

Instance vs category accuracy.

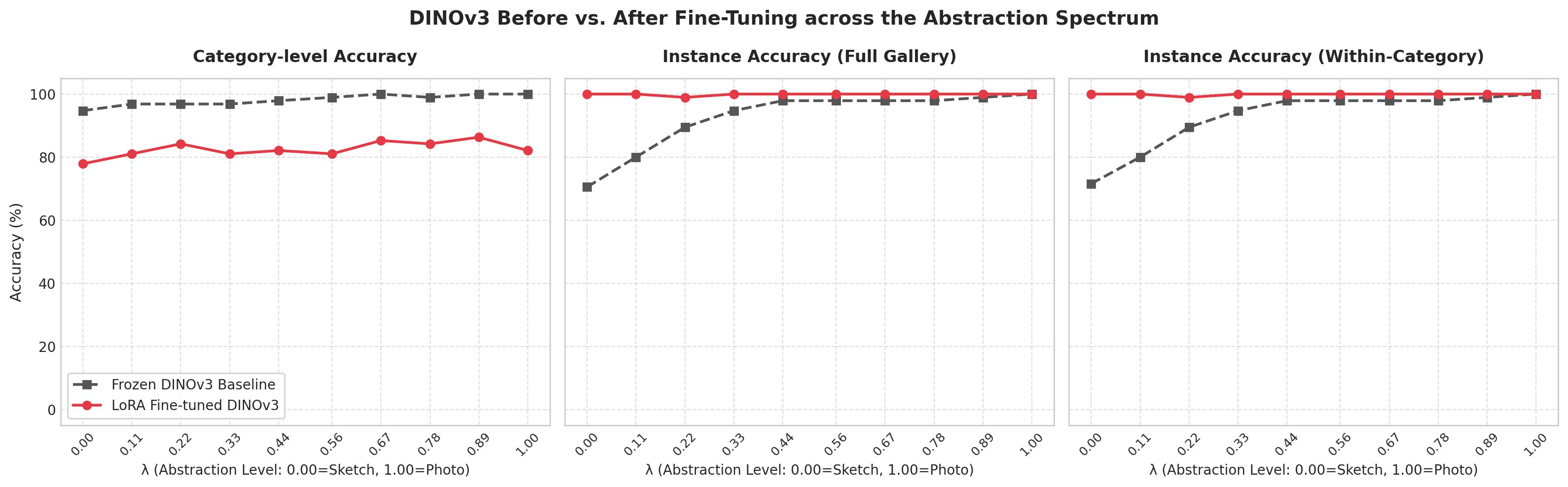

DINOv3 before and after spectrum fine-tuning.

Geometry note

MAE can keep relatively high attention-key self-similarity across λ while category/instance retrieval at λ=0 is still low. Layout stability on this metric does not by itself explain the retrieval numbers.

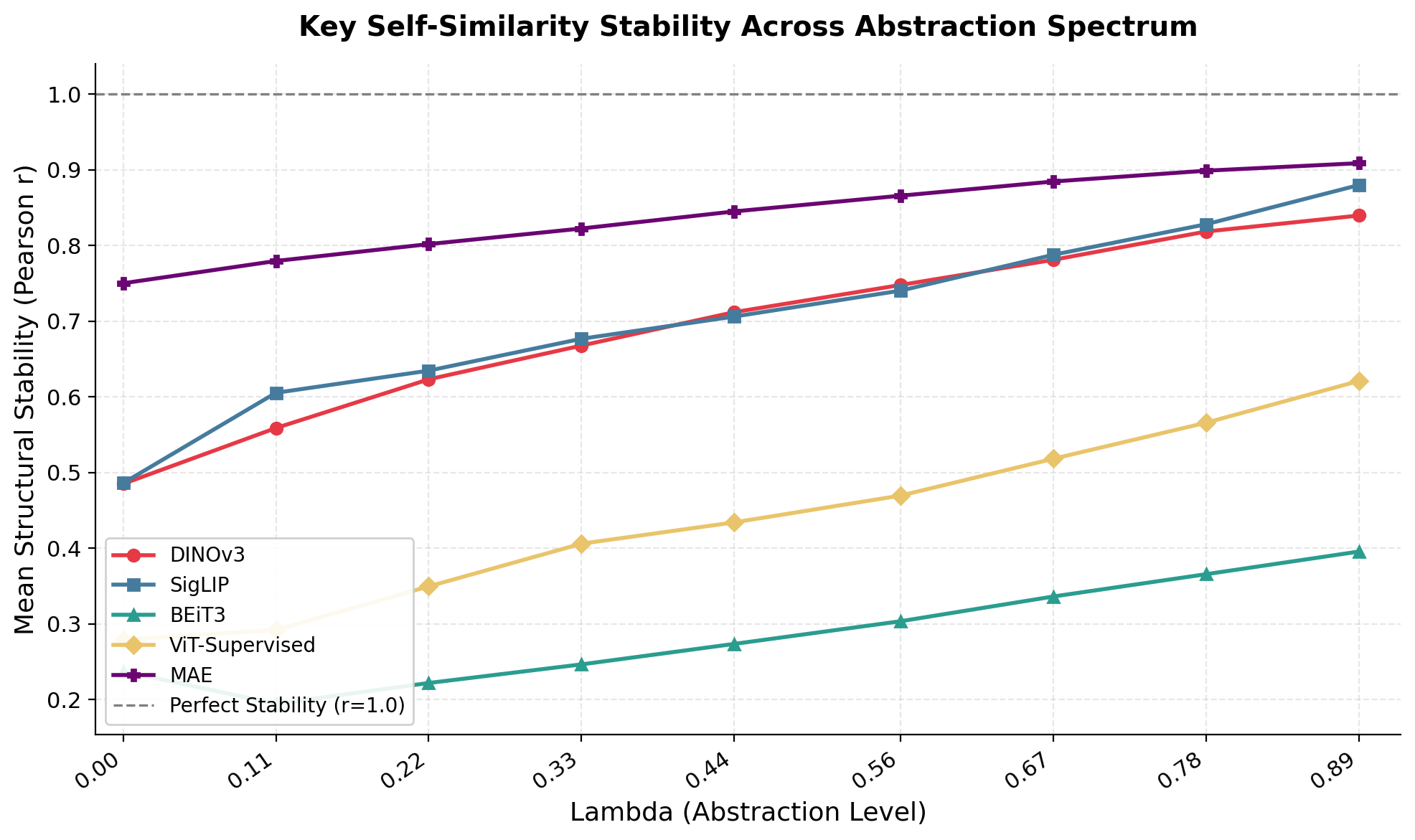

Key self-similarity across λ.
