Parallel Computing

Models (Interaction/Problem Decomposition)

• Shared Memory (SM): Java Threads, CUDA Further consider EREW CREW CRCW ERCW! And ways to deal with contention... deal with race conditions through locks, semaphors and monitors. Note: EREW SM could be considered MP system.
• Message Passing (MP): Further consider network topology. Star, grid, hypercube.
• Implicit Interaction: Functional programming, no side effects. F#, scala spark, map reduce

• Task Parallelism: MIMD MISD: Threads, message passing systems
• Data Parallelism: MIMD SIMD Example: CUDA
• Implicit Parallelism: F#, scala spark

Models (Flynn's Taxonomy)

• SISD: Classical computer

• SIMD: Program replication

• MIMD: Program partition

• MISD: Fault tolerance


Analyzing Parallel Algorithms

Models NC

• Big open question: NC = P? Important in the same way P=NP is important.
• Won't discuss this now!! Possibly come back to this later!

Example

• Sequential Algorithm int [] a = new int[VERY LARGE!!!] Consider SISD running time. public void search(int x){ for(i=0;i<n;i++){ if(a[i]==x)return true; } return false: } Running time: t(n) = O(n) Cost(n) = n/1 = n # Note we can consider this
• Parallel Algorithm 1 EREW SM SIMD/MP SIMD algorithm SIMD Message Passing algorithm could easily be shared memory Deposit message for processor i in message[i] 1. P1 reads x 2. Parallel do for(int j=0;j<N;i++){ Pi sends x to Pi+1 } 3. ... // check: Each Pi is responsible for n/N of a check to see if x is in my part of a // Gather result Parallel do for(int j=0;j<N;i++){ Pi sends result to Pi-1 Pi result = result || received result } // Result is in P1 Running time: t(n)=N+n/N+N=O(N+n/N) speedup = O(n)/O(N+n/N) cost = n*O(N+n/N) How to understand this? What about when N=O(n), say for example N=n t(n)=n speedup = O(n)/O(n) = 1 cost = n * n = n^2 Exercise: When is this optimal? N=7? N=log_2(n)?
• Parallel Algorithm 2 EREW SM SIMD/MP SIMD algorithm SIMD Message Passing algorithm could easily be shared memory Deposit message for processor i in message[i] Processors P1,...,PN 1. P1 reads x 2. P1 sends x to P2. 3. P1 and P2 send x to P3,P4 4. P1,P2,P3,P4 send x to P5,P6,P7,P8 ... // Question: How many parallel steps? // check: Each Pi is responsible for n/N of a check to see if x is in my part of a // gather result 1. PN/2+1,...,PN sends result back to P1,...,PN/2 2. P1,...,PN/2 computes result = result || received result 3. repeat of 1 for right Pi 4. repeat of 2 for right Pi ... // Question: How many repeats of 1. and 2. k. result is in P1 Running time: t(n)=log_2(N)+n/N+log_2(N) = O(n/N) speedup = O(sequential algorithm)/O(parallel algorithm) = O(n)/O(n/N) = N cost = parallel running time * number of processors used cost = N * O(n/N) = n This is optimal.

  Apache Spark

  Setup

  Setup with Docker docker-compose.yml docker stack deploy -c docker-compose.yml spark docker container ls # looking for master! docker exec -it CONTAINER_ID /bin/bash Setup on your system
  1. Install apache spark (just download), needs jdk
  2. Install sbt
  3. Install scala (optional)

  Architecture

  • Implicit Interaction, Implicit Parallelism: scala functional language, functional software + spark api
  • Goal: Apply lots of compute to lots of data.

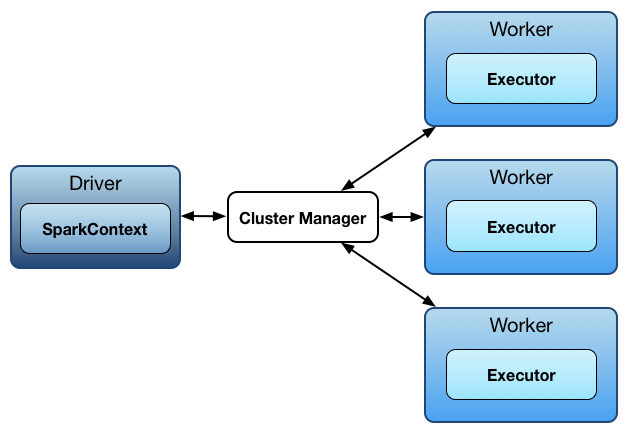

  Spark uses a master/worker architecture. There is a driver that talks to a single coordinator called master that manages workers in which executors run.
  • Spark API
  • RDD Programming Guide
  • Spark SQL, Datasets and Dataframes
  • Scala API

  Extract!!

  ./bin/spark-shell # Creates spark context val textFile = sc.textFile("README.md") textFile.count() // Number of items in this Dataset textFile.first() // First item in this Dataset textFile.take(100) val linesWithSpark = textFile.filter(line => line.contains("Spark")) # val mean not modifiable textFile.filter(line => line.contains("Spark")).count() // How many lines contain "Spark"? textFile.map(line => line.split(" ").size).reduce((a, b) => if (a > b) a else b) // access to Java API import java.lang.Math textFile.map(line => line.split(" ").size).reduce((a, b) => Math.max(a, b)) val words = textFile.flatMap(line => line.split(" ")).groupBy(identity) // pull all parts of the RDD into master words.collect() words.count() // wordCounts.reduce((a,b)=>a+b) // cant do that!! words.map((x)=>1) words.map((x)=>1).reduce((a,b)=>a+b) linesWithSpark.cache() linesWithSpark.count() linesWithSpark.count()
• Self contained application # Your directory layout should look like this $ find . . ./build.sbt ./src ./src/main ./src/main/scala ./src/main/scala/SimpleApp.scala # Package a jar containing your application $ sbt package ... [info] Packaging {..}/{..}/target/scala-2.11/simple-project_2.11-1.0.jar # Use spark-submit to run your application $ YOUR_SPARK_HOME/bin/spark-submit \ --class "SimpleApp" \ --master local[4] \ target/scala-2.11/simple-project_2.11-1.0.jar ... Lines with a: 46, Lines with b: 23

  RDD

  The main abstraction Spark provides is a resilient distributed dataset (RDD), which is a collection of elements partitioned across the nodes of the cluster that can be operated on in parallel. Operations are either Transformations or Actions ./bin/spark-shell --master local[4] import org.apache.spark.SparkContext import org.apache.spark.SparkConf val data = Array(1, 2, 3, 4, 5) val distData = sc.parallelize(data) val distFile = sc.textFile("data.txt") val lines = sc.textFile("data.txt") val lineLengths = lines.map(s => s.length) val totalLength = lineLengths.reduce((a, b) => a + b) lineLengths.persist() val lines = sc.textFile("data.txt") val pairs = lines.map(s => (s, 1)) val counts = pairs.reduceByKey((a, b) => a + b) counts.collect()

  SQL Datasets and DataFrames

  • A Dataset is a distributed collection of data.
  • A DataFrame is a Dataset organized into named columns.
  import org.apache.spark.sql.SparkSession val spark = SparkSession .builder() .appName("Spark SQL basic example") .config("spark.some.config.option", "some-value") .getOrCreate() // For implicit conversions like converting RDDs to DataFrames import spark.implicits._ val df = spark.read.json("examples/src/main/resources/people.json") df.show() df.printSchema() df.select("name").show() df.select($"name", $"age" + 1).show() df.filter($"age" > 21).show() df.groupBy("age").count().show() df.createOrReplaceTempView("people") val sqlDF = spark.sql("SELECT * FROM people") sqlDF.show()

  Playing With Genomic Data

  val genome = sc.textFile("/home/arnold/courses/csc492/sequence2") val c = genome.map(_=>1) c.reduce(_+_) val d = genome.map((_,1)) val d = genome.map(x=>x.split(" ")(3)) val e = d.map(x=>(x,1)) e.take(100) e.reduceByKey((x,y)=>x+y) val f = e.reduceByKey((x,y)=>x+y) f.collect() Using Dataframes, Datasets and Spark SQL import org.apache.spark.sql.SparkSession val spark = SparkSession.builder().appName("Spark SQL basic example").config("spark.some.config.option", "some-value").getOrCreate() import spark.implicits._ val genomeds = spark.read.format("csv").option("sep", " ").option("inferSchema", "true").option("header", "true").load("/home/arnold/courses/csc492/sequence2") genomeds.printSchema() val genomeds = spark.read.format("csv").option("sep", " ").option("inferSchema", "true").option("header", "false").load("/home/arnold/courses/csc492/sequence2") genomeds.printSchema() genomeds.groupBy("_c3").count().show() val result = genomeds.groupBy("_c3").count() result.createOrReplaceTempView("v") spark.sql("select * from v").show()

  References

  • Parallel Algorithms
  • Circuit Complexity
  • The Design and Analysis of Parallel Algorithms
