CSC409 Scalable Computing

Basic Tasks

• Storage
• Computation

Distributed Systems

Google
Facebook
Yahoo
URL Shortener: https://bitly.com/

Scalability

• Size scalability adding more nodes should make the system linearly faster; growing the dataset should not increase latency
• Geographic scalability it should be possible to use multiple data centers to reduce the time it takes to respond to user queries, while dealing with cross-data center latency in some sensible manner.
• Administrative scalability adding more nodes should not increase the administrative costs of the system (e.g. the administrators-to-machines ratio).

Performance

• Low latency measured as response time for a given piece of work.
  Definition

  Latency: The state of being latent; delay, a period between the initiation of something and the occurrence.
  Examples

  • Pings
  • Latency numbers every programmer should know
  • Interactive Latency
  This is an online concept, stream of requests. Can measure average or max or min. percentile may be best for online applications but there still may be problems with that. See for example, How NOT to Measure Latency.
  Examples

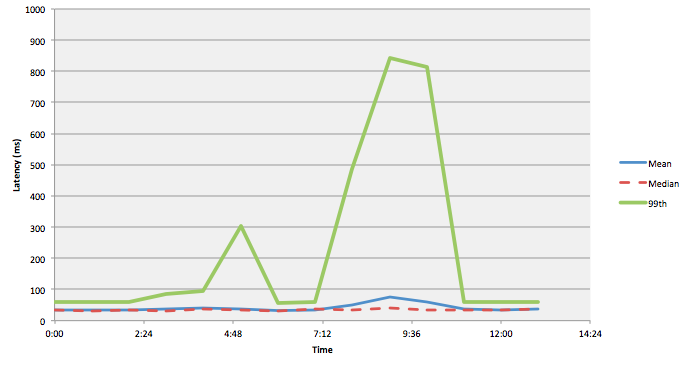

  99% have less than 850ms latency at 9:30, what about the other 1%?
• High throughput (rate of processing work), measured as Transactions Per Second. This is potentially an offline/batch concept.
• Low utilization of computing resource(s)

Availability

• Availability = uptime / (uptime + downtime)
• Availability is a measure of fault tolerance.

Availability %          How much downtime is allowed per year?
--------------------------------------------------------------
90% ("one nine")        More than a month
99% ("two nines")       Less than 4 days
99.9% ("three nines")   Less than 9 hours
99.99% ("four nines")   Less than an hour
99.999% ("five nines")  ~ 5 minutes
99.9999% ("six nines")  ~ 31 seconds

Fault tolerance

Simple platform optimization (no dev $ required!!):

• Better faster CPU
• CPU with more cache
• CPU with more cores (let OS take care of parallelizing)
• Faster, more RAM
• Faster, larger disk, SSD but be aware ... Network is the new storage bottleneck
• Faster, larger network

Algorithm optimization: O(large) -> O(small)

Datastructure optimization

• http://bigocheatsheet.com/
• Lists to arrays/trees
• Arrays to dictionaries

Programming language optimization

• Python -> Java -> C
• programming language benchmarks

Performance Tuning: C/Java

• Don't optimize/tune early.
• Profile first, then tune.
  • C profilers
  • Java Profilers: JProfiler, jvisualvm . jvisualvm is part of the JDK, so you proably already have it installed.
  Example

  Some different algorithms for determining Primality are in Primes.java javac Primes.java java -Xverify:none Primes jvisualvm # Now connect to the running instance of Primes in jvisualvm
• Local is better
• Less I/O is better
• Loop Jamming
• Loop unrolling
• Inline small function calls
• Use processor efficient datatypes: int instead of float, unsigned int instead of int.
• Compare to 0 instead of i<m (count down)

Multithreadding:

Speeding up Disk I/O

Monitoring Overall System Performance

DB/Persistant Store Optimization:

• The best I/O is no I/O
• Use RDBMS
• Change Schema
• Compress data
• Partition data based on use case
• Improve queries, use indexes, optimize schema
• Mirror database
• Change type of database

Time/Space tradeoffs:

• Spend some extra space to save some time
• Dynamic Programming vs Recursion
  Example

  subsetsum.py

Add more...

• Add more cpu: GPU
• Add more hosts
• Add connectivity
• Add more storage
• But...

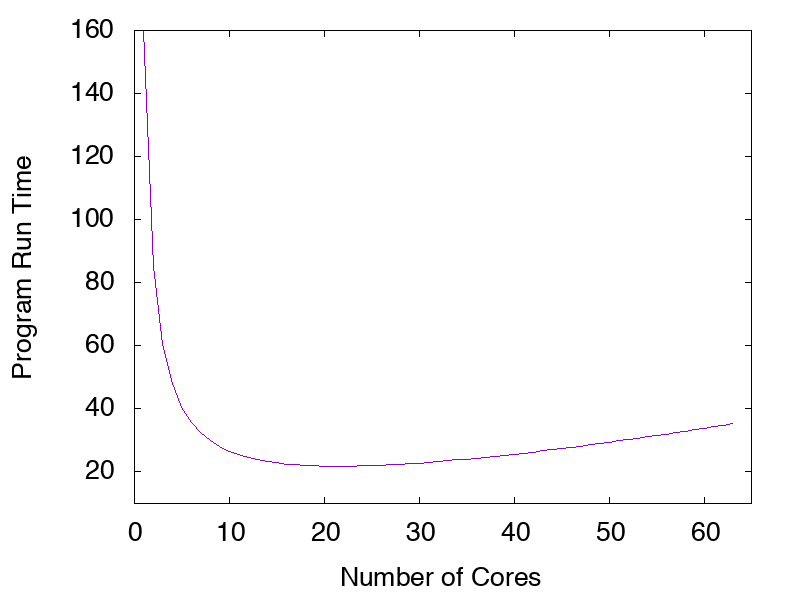

Diminishing Returns

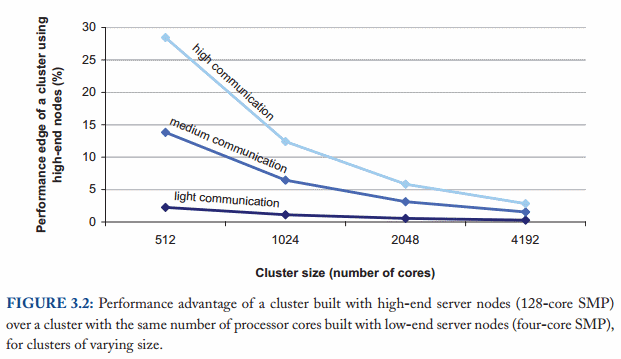

Expensive Hardware Doesn't Pay

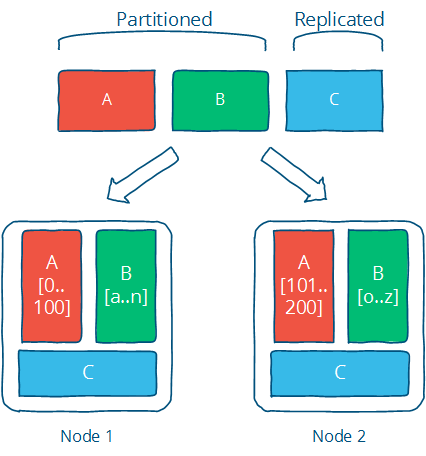

Replication vs Partitioning

Replication and Partitioning

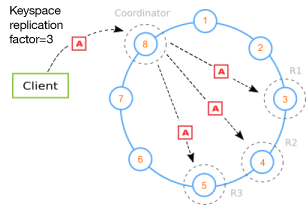

Example: Cassandra

Architecture

• Many nodes cooperate to store data.
• SCALABLE STORAGE in terms of size (=total data stored), latency and throughput.
• Client connects to any node in the cluster. The connected node is the coordinator for requests.
• Coordinator hashes keys to find main node responsible for data as well as knows replicant nodes.
• Load balancing done without any central server, since every node can act as coordinator and has the same hash function as well as knowledge of the replication strategy.
• Replicated data results in FAULT TOLERANCE+AVAILABILITY
• Sacrifice Consistency for eventual, tunable consistency tradeoff with Availability.

ALL Returns the most recent data from all replicas.
QUORUM Returns the most recent data from the majority of replicas.
TWO Returns data from two near replicas.
ONE Returns data from the nearest replica.

WRITE CONSISTENCY LEVELS
ALL Confirmed write on all replicas.
QUORUM Confirmed write on majority of replicas.
TWO Confirmed write on two replicas.
ONE Confirmed write on one replica.
