Networking Basics

See Notes from csc309
Tutorial notes
We also went through examples using firefox and parosproxy, nmap, wireshark, zenmap (well next time).

Footprinting/Fingerprinting

Definition: the gathering of information about a system or network (usually footprinting refers to the network, fingerprinting refers to system level information).
Attacker’s point of view

Identify potential target systems
Identify which types of attacks may be useful on target systems

Defender’s point of view

Vulnerability analysis: Identify information you’re giving away. Identify weaknesses in systems/network. THEN FIX THEM
Know tools available to attacker
May be able to tell if system is being footprinted, be more prepared for possible attack, identify source of probe.
Construct audit trail of activity

Information to Gather

System

IP Address, Name and Domain
Operating System: Type (Windows, Linux, Solaris), Version (98/NT/2000, Redhat 7/8/9,Fedora,SuSe)
Usernames
File structure
Open Ports (what services/programs are running on the system)
Physical Proximity/Location

Network

System information for all hosts
Network topology
- Gateways
- Firewalls
- Overall topology
Network traffic information
Specialized servers: Web, Database, FTP, Email, etc.

Linux tools

System

uname -a: Determine system information, hostname, kernel version
uptime: how long has the system been up
hostname: Determine name of current system
ifconfig: configure network interface. Displays IPs and mac addresses for current system.
who: Users on current system. Useful for identifying unusual activity (e.g. activity by newly created accounts or inactive accounts)
last [-n] : Show last N users on system. Useful for identifying unusual activity in recent past.
lsof: display currently open files, which process has them open and the processes owner.
mount: show filesystem mounts
ps aux: see all processes running and who owns them.

Network

ping:
Potential Uses
- Is system online, through response.
- Gather name information, through DNS.
- Estimate relative physical location, based on RTT (Round Trip Time) given in summary statistics
- Identify operating system: Based on TTL (packet Time To Live) on each packet line
  TTL = number of hops allowed to get to system 64 is Linux default, 128 is Windows default (but can be changed!)
Notes: Uses ICMP packets. Often blocked on many hosts
netstat:
Possible uses
- Shows connections, routing information, statistics
- find adjacent machines, used ports
Notes: Many flags netstat // open sockets, etc. netstat -s // summary statistics netstat -r // routing tables netstat -p // programs netstat -l // listening sockets netstat -ta
traceroute:
Potential Uses
- Determine physical location of machine
- Gather network information (gateway, other internal systems)
- Find system that’s dropping your packets, evidence of a firewall
Notes: Can use UDP or ICMP packets. Results often limited by firewalls.
finger localuser or finger@system or finger remoteuser@system
Potential Uses
- Collect usernames
- Determine if user is currently logged in
Notes: Often blocked
nslookup, dig: associate domain name with ip and vice versa
Potential Uses
- Query internet name servers
- Find name for IP address, and vice versa
Notes:nslookup generally deprecated, generally use dig. nslookup sometimes useful when dig fails
arp: display the arp table. List machines that this machine has contacted recently.
Possible uses
- Useful to determine if a foreign system is on the network.
- Find adjacent systems
whois or whois uw%.edu:
Potential Uses
- Queries nicname/whois servers for Internet registration information
- Can gather contacts, names, geographic information, servers, useful for social engineering attacks

Port scanning

nmap
Potential Uses
- determine the systems on the network (-sP) (example)
- determine the services they are running (-sT) (example))
- determine the version of services they are running (-sV)
For the defender, this is used to determine if unknown hosts are on the system. If there are vulnerable services running on the network.

Packet sniffing

ethereal/wireshark
Potential Uses
- Capture and view network traffic. Hacker can use this to capture cleartext passwords. To view details behind uses of services. Defender uses this to see if portscans are taking place, if unusual conversations are taking place.

Intrusion Prevention

Linux Runlevels

General rule

Don't run services you don't need.
Don't run vulnerable versions of services you do need.
Restrict who can use services.

Don't run services you don't need

netstat: See which services are currently running on your system.

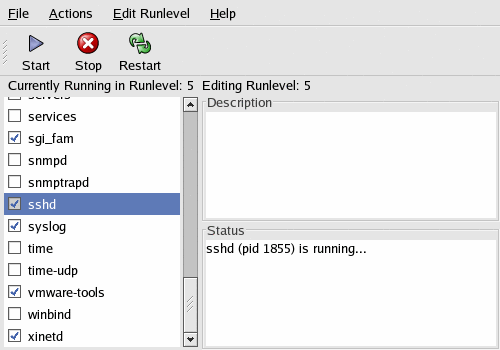

runlevel editor: Used to add, remove services from a given runlevel. (bum/rcconf) What you see below is a list of services that will all start when the system enters runlevel 5.
xinetd: use it's configuration files (in /etc/xinetd.d) to restrict, disable services run by this superserver. In appropriate xinetd.d config file, set disable = yes if the service is not needed.

Don't run vulnerable versions of services you do need

nessus: This tool automates nmap+understanding vulnerable versions of services.
OpenVAS The world's most advanced Open Source vulnerability scanner and manager Run this to report on versions of services running on a network.

Firewalling (Restrict who can use services)

See the notes

Network Architecture

See the notes

Intrusion Detection

Snort is capable of

real-time traffic analysis
packet logging on IP networks
protocol analysis
content searching/matching
detect a variety of attacks and probes , such as buffer overflows, stealth port scans, CGI attacks, SMB probes, OS fingerprinting attempts

Works by sniffing all traffic, understanding network protocols and patterns behind exploit attempts.

Guardian Guardian is a security program which works in conjunction with Snort to automaticly update firewall rules based on alerts generated by Snort.

Low level attacks

Other tools

sectools.org
