HouseCraft Project & SydneyHouse Dataset

Index



HouseCraft


What is HouseCraft?


In HouseCraft, we utilize rental ads to create realistic textured 3D models of building exteriors. In particular, we exploit the address of the property and its floorplan, which are typically available in the ad. The address allows us to extract Google StreetView images around the building, while the building’s floorplan allows for an efficient parametrization of the building in 3D via a small set of random variables. Our approach is able to precisely estimate the geometry and location of the property, and can create realistic 3D building models.

Media
HouseCraft covered by 2 Minute Papers. Thank you Károly!


How does HouseCraft work?

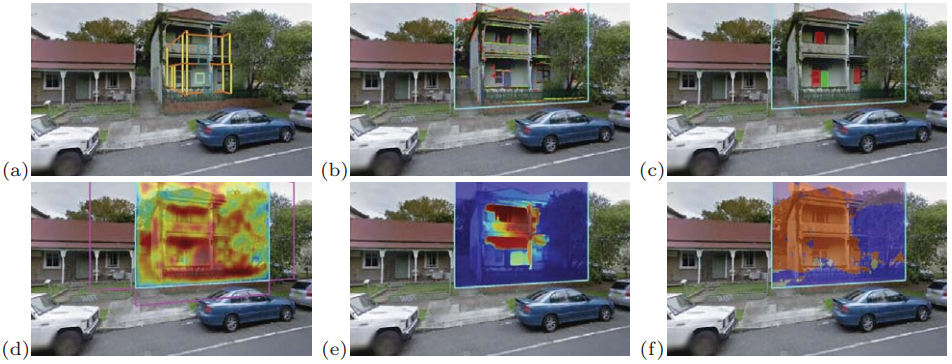

Starting from the address of the house (a), we propose an energy minimization framework which jointly reasons about the height of each floor, the vertical positions of windows and doors, as well as the precise location of the building in the world’s map, by exploiting several geometric and semantic cues from the StreetView imagery (b-f).


Code, paper, and results

Source code:

Paper and supplemental material:

Demo and results:

demo_eccv16 from Hang Chu on Vimeo.



SydneyHouse


The original SydneyHouse dataset


174 random houses in Sydney with:

Download:


SydneyHouse: facade parsing


An extra dataset derived from SydneyHouse, that contains rectified house facade images with labelled window, door, and garage.

Download:


SydneyHouse: point correspondence


An extra dataset derived from SydneyHouse, that contains dense point correspondences between streetviews. Currently 17.3K points, with sample rate 1 point/m.

Download:


SydneyHouse: annotation tool

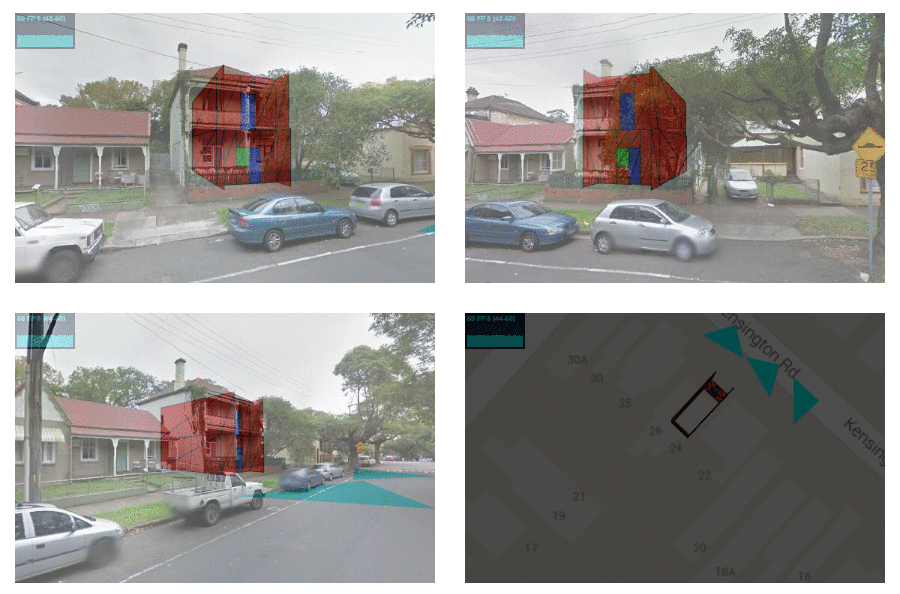

A WebGL-based annotation tool we used to create house ground truth information.

Download:



Citation

Hang Chu, Shenlong Wang, Raquel Urtasun, Sanja Fidler. HouseCraft: Building Houses from Rental Ads and Street Views. ECCV 2016.

Team



Hang Chu, Shenlong Wang, Raquel Urtasun, and Sanja Fidler

University of Toronto
